Highlight:
Ultra Thin Indoor Led Display Screen
, Small pitch led display
, indoor video wall display
LED Full-color Display Screen Indoor TV Wall Conference Room Large Screen Video Wall
Indoor 4K 8K ultra Thin LED Video Wall Indoor Commercial LED Wall
Indoor Advertising LED Display Screen Full Color LED Indoor Display
4K HD LED Video Wall Indoor Led Display Advertising Screen
P1.53 indoor fiexd LED display Paramenters:
| HSCXLED-Indoor led display screen ---SMD LED Screen |
| Model |
P1.53 |
| Pixel pitch |
1.53mm |
| LED configuration |
SMD 1212 |
| Module size |
320*160mm |
| Scan mode |
1/52 scan |
| Pixel matrix per Module |
208*104 dots |
| Pixel density(dots/sqm) |
422,500 |
| Cabinet size |
640mm*480mm/640mm*640mm/320mm*480mm/320mm*640mm/320mm*160mm |
| Screen size |
Customizable according to Cabinet size |
| Refresh rate |
3840-7680HZ |
| Brightness |
600-800nit |
| Ingress Protection |
IP30/IP45 |
| Optimal Horizontal Viewing Angle |
≥ 160° |
| Optimal Vertical Viewing Angle |
≥ 160° |
| AC Input Voltage |
AC 110V/240V±10%,50Hz/60Hz |
| Gray Level |
14-16bit |
| Working Temperature |
-20 -50(℃) |
| Operating Humidity |
10%~95% non-condensing |
| Video Format |
Support RM,FLV,AVI,MP4 and other mainstream video formats |
| Picture Format |
Support JPG,PNG,and other image formats |
| Life Time |
≥ 100000(Hours) |
| Control Method |
Remote Control, WIFI, USB, APP Control, phone/computer |
SMD LED Screen feature:
• SMD technology supports high pixel density, enabling higher resolution displays and providing clearer, more detailed images.
• It offers rich colors and high contrast.
• High automation: Utilizing surface mount technology (SMT), production is highly automated.
• Good maintainability: Compared to some other packaging technologies, SMD displays are generally easier to maintain.
• High cost-effectiveness: Compared to some high-end display technologies, SMD displays offer a cost advantage.
Why choose HSCXLED-Indoor fixed LED display screen:
ULTRA-HIGH RESOLUTION LED DISPLAY
SMALL PIXE LPITCH LED DISPLAYS
Clear image guality,full colors,no lag,no flicke,Ultra Slim & Light weight Desigr Totally Cable-less Design Totally Front maintenance.

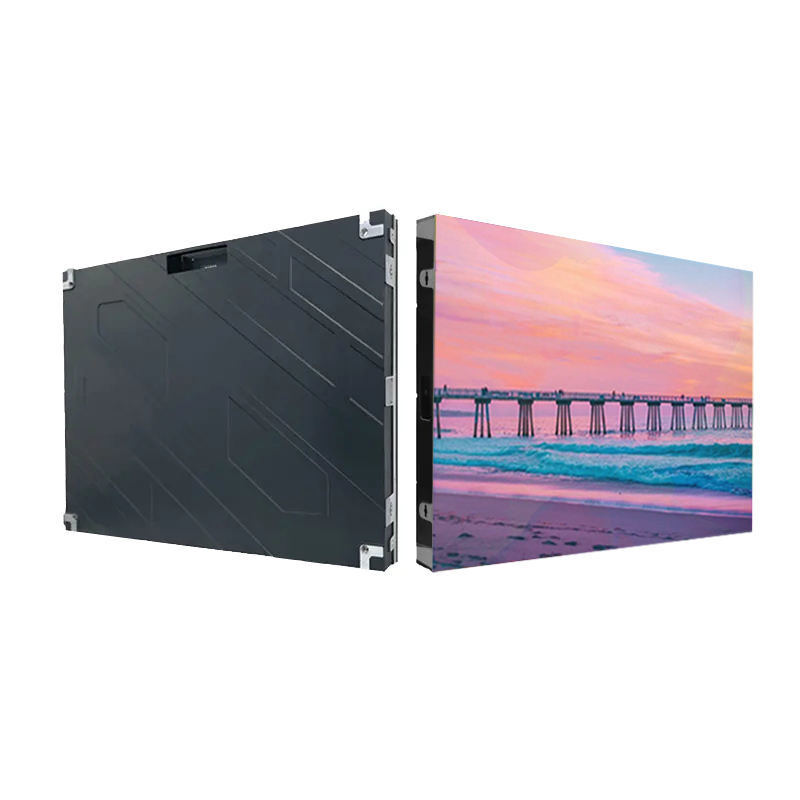

Die casting aluminum cabinets only 6.8kg and 4.6cm thickness.Ultra-Thin, With The Led Display Certifed By KC/CE/ROHS/FCC,The die-casting aluminumcabinet Sturdy and durable.
GOB TECH
The LED display adopts advanced GOB(Glue on Board) protection technology,ensuring superior durability. the LED surface is fully sealed to provide Water-proof,Scratch-proof, waterproof protection making it resistant to dust,water splashes,and impacts.This robust design prevents LED drops or damage during accidental collisions,ensuring long-lasting performance even in challenging environments.
FRONT INSTALLATION AND SERVICE
Fine Pixel Pitch LED display, 640*480mm indoor fixed installation LED display adopts magnet Adsorption LED panel to make the cabinet is accessed with frontal accessed.Easy installation cabinet-Hidden rear cable connection hole.LED modules,receiver cards and power supplies can be maintained in the front.
WIDE VIEWING ANGLES
Full RGB color produce vivid pictures.178°super wide horizontal and vertical viewing allow for maximum audience engagement in short viewing distances.Wide 170° Viewing Angle,Clear and vivid from every direction.HSCXLED Indoor LED display maintains clear display quality from different viewing angles,ensuring that the audience can see the screen content clearly regardless of the angle from which they are viewing.
HIGH DYNAMIC RANGE
Fine pixel LED display Kseries cabinet allows differentials to make screen resolution from 1080p to 4k.8k picture quality .Cabinet colors are available in black and silver.The16:9 /4:3 Visual Golden Ratio,Easypoint-to point splicing into1080P.2160P,3840P.7860P and gotherstandard resolution large screen,Any size can be customized.
HIGH CONTRAST
Black SMD LED and high grey scale makes perfect perfomance.Supports Flash Correction Storage Of Light Board Color automatic correction, bring you a better visual experience,Intelligent module design, automatically read and up load.
EASY INSTALLATION
Installation brackets will be sent together with the cabinets.Convenient And Beautiful.Convenient And Beautiful. Easy Module Replacement Module hard connection,regardless of left and right,fast installation Module replacement is more convenient and simple.
INDOOR FIXED LED DISPLAY
Easy Installation with HSCXLED Customized Bracket,Say No to Local Structure.
Step1:Assemble the profile aluminum bracket.
Step2:Make the required size bracket one by one,and then mount on wall with screw.
Step3:Put the empty cabinet on bracket with the matching screws and holes.
Step4:Connect the power cable and data cable on modules first,then use vacuum tool to put themodules
on cabinet.ln this process,can adiust the screen flatness.
FLEXIBLE APPLICATION SCENARIOS
Whether it's used in conference rooms, exhibition halls, or retail stores, this indoor LED display can meet your diverse needs. It can display dynamic content, such as product promotions, event announcements, and real - time information, attracting the attention of your audience effectively.
WIDELY APPLICABLE SCENARIOS
HSCXLED - Indoor LED display screen, high-definition display screen, easy to install, lightweight box design of LED display screen saves customers installation costs. widely used advertising publish, shopping mall, retail store, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, Education, medical treatment......
Company Products and Advantages Introduction:
Shenzhen H&S Innovation Technology Co., Ltd specializes in the manufacturing and supply of a diverse range of LED display screens that cater to various indoor and outdoor needs. Our products including Ultra-thin LED display screen,COB LEDdisplay,Round Led Display,Poster LED Display /LED Mirror Screens ,Outdoor Street Pole Led Screen,Outdoor 3D LED Display Screen, Indoor LED Display , LED Circular Screen, Creative LED Display Screen, LED Soft Screen, and LED Ball Screen.
Indoor led display screen -----Ultra-thin LED display screen
Double-sided LED Display Screen ,Screen thickness: 24mm (single-sided), 30mm (double-sided) , Refresh rate: 7680Hz Weight: 20kg/square meter , Installation methods: Ceiling mounting, side mounting, wall mounting ,Material: Aluminum profile cabinet, lightweight and thin ,The screen uses a rigid connection design, eliminating the need for wiring during module installation, making it convenient and quick! ,Cabinet sizes available: 500*500mm.
Outdoor 3D LED Display Screen:
These screens are designed to provide an immersive and engaging visual experience outdoors. With their advanced 3D technology, they can display stunning graphics, videos, and animations that capture the attention of passersby. They are perfect for advertising, events, and entertainment venues.
LED Poster Display /LED Mirror Screen:
These screens combine the functionality of a traditional poster with the dynamic capabilities of an LED display. The LED poster screens can display digital posters, animations, and videos, while the LED mirror screens offer a reflective surface when turned off and can display content when turned on. They are ideal for retail stores, restaurants, and other commercial spaces.
LED Pole Screen:
The LED pole screens are designed to be mounted on poles or columns, making them perfect for displaying information or advertising in high-traffic areas. They can be used in streets, malls, and other public spaces to provide real-time updates, promotions, and announcements.
LED Circular Screens:
The LED circular screens are unique and eye-catching, making them perfect for creating a focal point in any space. They can be used for branding, advertising, and displaying information in a circular format.
Round Led Diaplay:
Our creative LED display screens offer endless possibilities for customization and creativity. They can be designed to fit any shape, size, and specification, making them perfect for unique and eye-catching displays. Whether you need a custom-shaped screen for a specific event or a unique design for your brand, we can help you bring your vision to life.
