Highlight:
Ultra-Thin Led Display
, LED Double-sided Display
, Ultra Thin Dual Side led Screen
 |

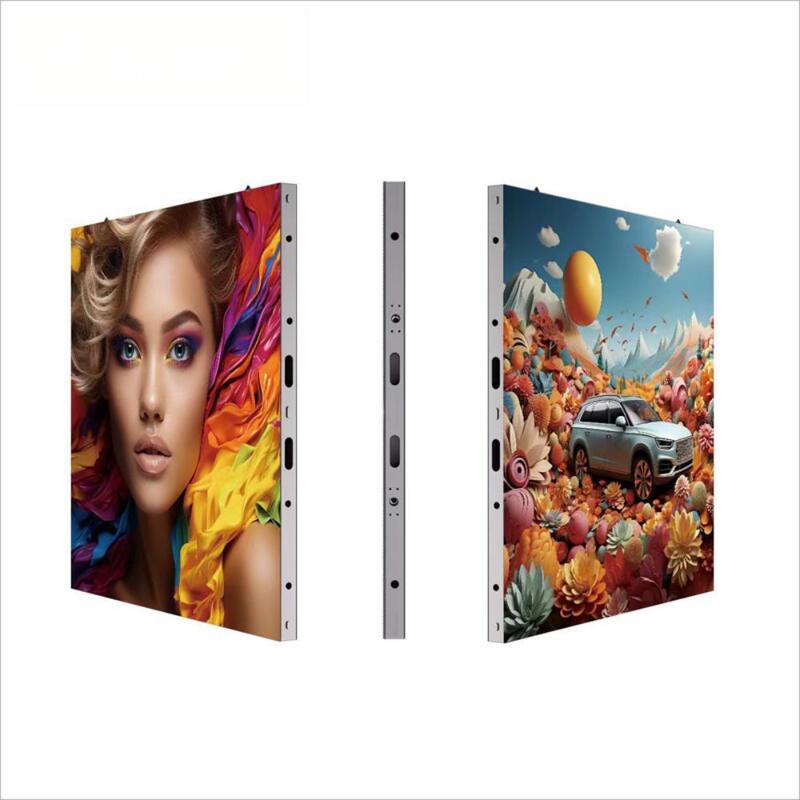

Ultra-Thin Double-Sided LED Display
Slim Indoor LED Advertising Display
Our Ultra-Thin Indoor Double-Sided LED Display features a precision one-piece aluminum profile cabinet, providing a slim, lightweight and durable structure for commercial indoor applications.
With a standard 500 × 500 mm cabinet and only 26 mm overall thickness, the display provides seamless installation while minimizing installation space. The double-sided design allows different content to be displayed on each side, making it ideal for shopping malls, retail stores, airports and showrooms.
|
Ultra-Thin Double-Sided LED Display Details Introduction:
|
Indoor Ultra-Thin Double-Sided LED Display
– High-Definition Slim Digital Signage
Looking for space-saving indoor signage? The HSCXLED Ultra-Thin Double-Sided LED Display offers 7680Hz refresh rate, 30mm thick cabinet, and dual-side synchronous/asynchronous playback. Ideal for malls, airports, and retail windows.
|
|
|
The Future of Space-Saving Indoor Advertising
Are you struggling to maximize advertising impact in narrow spaces like mall atriums, airport corridors, or retail windows? The HSCXLED Indoor Ultra-Thin Double-Sided LED Display is the ultimate solution. With a revolutionary thickness of only 30mm (double-sided) and a high-definition, this display breaks the limitations of traditional single-sided screens. It allows you to present content to two directions simultaneously without occupying extra floor space, making it a cost-effective and visually stunning choice for modern indoor environments.
|
|
Truly Ultra-Thin & Lightweight Structure
Space is premium in indoor settings. Our die-cast aluminum cabinet is only 30mm thick for the double-sided version. It significantly reduces the load-bearing pressure on walls or ceilings and can be installed in narrow columns, aisles, and window displays where traditional bulky screens cannot fit .
|
|
|
Dual-Sided Display Flexibility (Sync & Async)
Why buy two screens when one works better? This display supports both synchronous and asynchronous playback. You can show the same promotional video on both sides to amplify the message, or display different content (e.g., a product ad on the front, and a QR code/price list on the back) to target different audiences simultaneously. This doubles your information release efficiency.
|
|
Cinema-Grade Visual Performance
Equipped with high-quality LED lamps and a 7680Hz refresh rate, the Ultra-Thin display delivers crisp, vivid, and delicate images with high contrast and a wide color gamut. Whether it is bright retail lighting or a dimly lit lounge, the adjustable brightness (650-3000 nits) ensures your content is always clear and eye-catching .
|
|
|
Easy Front Maintenance & Smart Control
Time is money. The Ultra-Thin display modular design allows for front maintenance—you can replace a single module quickly without needing rear access. Coupled with an intelligent control system (NovaStar/Colorlight compatible), you can manage content, adjust brightness, and diagnose faults remotely via WiFi, LAN, or cloud, reducing operational costs.
|
|
TWO-SIDED DISPLAY,TWO BRIGHTNESS
The brightness of the lamp beads in different environments is different,and the visualexperience can be better.The content can be played asynchronously on both sides ofthe screen, and the content display is more abundant.
|
|
|
SEAMLESS SPLICING, CUSTOMIZED SIZE
The four sides of each screen are reserved for installation positions, and the screensare spliced through the installation direction screws.No gaps will be created duringsplicing, making the picture more vivid and natural.
|
|
Front Maintenance – Fast, Tool-Friendly Service
All critical components—including the LED modules, power supply box, and receiving card—support front access maintenance. Using a user-friendly suction tool, technicians can remove and replace modules in seconds without needing rear access (which is often impossible on wrapped pillars). This design greatly reduces long-term maintenance costs and downtime, ensuring your digital signage stays live and profitable.
|
|
|
|
Flexible Installation Methods
Due to its ultra-thin and ultra-light cabinet design, hanging installation can be one of the most suitable options. It can save a lot of labor resources and cost of structure for you.
|
|
Ultra-thin LED display Applications
Double-sided LED display screen can be used for varies environment, specially developed for sport even live steaming, railway or airport station boarding, exhibition hall, shopping mall commercial advertising and other public places. Except these place, the LED display also can be used for the superstore and glass curtain wall. As it is convenient for multi-angle viewing, improving the audience rate of advertising promotion, so it has a widen application extensive use.
|
|
Ultra-Thin Double-Sided LED Display Paramenters:
| HSCXLED-Ultra-Thin Double-Sided LED Display |
| Model |
P1.56 |
P1.953 |
P2.604 |
P2.976 |
P3.125 |
| Pixel Pitch |
1.5625(mm) |
1.953(mm) |
2.604(mm) |
2.976(mm) |
3.125(mm) |
| LED Type |
SMD1212 |
SMD1515 |
SMD1515 |
SMD2020 |
SMD1415 |
| Pixel Density |
410881(dot/m²) |
262144(dot/m²) |
147456(dot/m²) |
112896(dot/m²) |
102400(dot/m²) |
| Module Size |
250*250(mm) |
| Cabinet Size |
500*500 *40(mm) |
| Display size |
Splicing any size according to the cabinet size |
| Cabinet Thickness |
(24mm/30mm)
(Single-sided/Double-sided)
|
| Cabinet Material |
aluminum profile |
| Maintenance Type |
Full Front |
| Cabinet Weight |
4.8(kg) |
| Grey Scale |
14-16bit |
| Refresh Rate |
7680(hz) |
| Brightness |
600-3500(nits) |
| View Angle |
160°/160° |
| Input Power |
100-240(V) |
| IP Rating |
IP45/IP45 |
| Installation Type |
Fixed Installation, Rounded Corner Installation, Suspended Installation, Canopy Installation |
| Media available |
Datasheet, EDA/CAD Models, Other, Photo ,video,3D,and other formats |
| Life Time |
≥ 100000(Hours) |
Highlight: Ultra-Thin Led Display, LED Double-sided Display, Ultra Thin Dual Side led Screen
Custom sizes, GOB/SMD options, and brightness configurations available upon request.
Ultra-Thin Led Display Ideal Application Scenarios
Where can this ultra-thin double-sided screen be used?
Shopping Malls & Retail Stores: Hang in atriums or place in windows to attract customers from both inside and outside.
Airports & Transportation Hubs: Display flight info on one side and ads/public service info on the other.
Exhibition Halls & Museums: Show exhibit details on both sides for visitors walking in either direction.
Corporate Lobbies: Display company culture on one side and visitor guidelines on the other.
Quality Assurance & Certifications
As a professional manufacturer based in Shenzhen, China, HSCXLED ensures strict quality control. This product is certified with KC, CE, ROHS, FCC, CCC, and ISO9001, guaranteeing safety, durability, and compliance with international standards.
Ultra-Thin Double-Sided LED Display(FAQ)
Q: Can I customize the size of the display?
A: Yes, the display supports seamless splicing. You can customize any size you need based on the 500x500mm cabinet unit .
Q: What control systems does it support?
A: It is compatible with leading systems like NovaStar and Colorlight, supporting HDMI, WiFi, and asynchronous cloud control .
Q: Is the brightness adjustable on both sides independently?
A: Yes, the LED display screen supports adjustable brightness on both sides, allowing for different brightness levels depending on the ambient light of each side.
