Outdoor GOB Round LED Display P6 Single Sided IP65 Waterproof
Product Details:
Place of Origin: | SHENZHEN |
Brand Name: | H&S LED |
Certification: | CE ROHS FCC |
Model Number: | P4 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Packaging Details: | Fight case/Wooden case/Honeycomb Box |
Delivery Time: | 15-35 workdays |
Payment Terms: | L/C, T/T, D/A, T/T, Western Union, MoneyGram |
Supply Ability: | 1000Set |
Detail Information |
|||
Produce Name: | Outdoor Round LED Diaplay | Shape: | Round |
---|---|---|---|
Size: | Diameter 512mm/300mm | Customization: | Single Sided/Double Sided |
Brightness: | ≥5500cd/sqm | Refresh Rate: | ≥3840Hz |
Ip Rating: | (GOB)IP65 | Input Voltage: | AC110V-220V |
Operating Temperature: | -20°C~+60°C | Lifetime: | ≥100,000 Hours |
Highlight: | GOB Round Led Display,IP65 Waterproof Round Led Display,GOB p6 led display |
Product Description

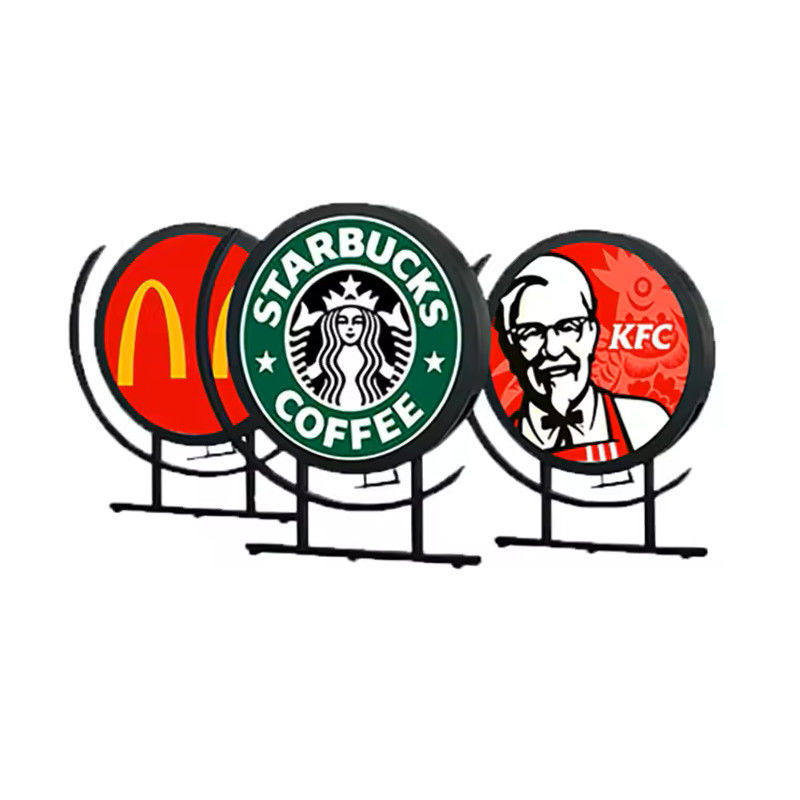

LED creative display screen-Outdoor Round led display
Model Number : round led display
Color : Full color
Place of Origin : Shenzhen, China
USE : outdoor
Application scenario description:
LED circular screen is a customized shaped LED display screen based on on-site and customer requirements. Currently, most existing LED display screens are flat displays. In some public places, due to space limitations, flat display LED screens cannot be used. In order to improve the visual effect, a circular LED screen needs to be installed in a spacious central square, which can improve the visual effect of the LED display screen. It also has artistic design, enhance the atmosphere of the site environment, and make the installed LED screen occupy less space.
Applied in LED venues such as stages, studios, hotels, airports, and street light advertisements, LED display screens with different spacing and diameter requirements have different display effects. The higher the pixel density, the easier it is to express the details of the image.
Product features:
True color screen, 360° viewing angle, all-round display
Stylish design, seamless assembly, make your ad more attractive
Various pitches and flexible sizes
Our round LED screens are available in a variety of pitch options
It also has flexible dimensions and is available in our modular designs
Product Technical Parameter
Outdoor LED circular display screen specification parameters (Single/Double sided) |
||
Usage environment | OUTDOOR | |
Model | p4 | P4 |
Diameter size | 512mm | 600mm |
Module resolution | 128*128 | 70*70 |
Cabinet material | Iron | |
Box thickness | Single sided-7cm ,Double sided10cm | |
Net weight(kg) | 11.9 | 12/16 |
Installation method | Wall mounted / Hoisting / Inlay | |
Control mode | Asynchronous control/mobile APP, WIFI, U disk, cloud platform | |
Best viewing distance(m) | 4 | 4 |
Brightness(nits) | ≧5500cd/m2 | |
IP Grade | IP65 | |
Best viewingangle | (Horizontal/Vertical)140 /140 | |
Gray scale(bit) | 14-16bit | |
Max power consumption | 200W/m2 | |
Refresh rate(HZ) | 3840HZ | |
Maintenance methods | Pre maintenance | |
Working voltage | AC110-220V±15% 47-64HZ | |
Service life | >100,000 Hours Theoretical value |
Features:
High Brightness: LED circular screens offer high brightness levels, making them easily visible even in daylight or brightly lit environments.
Energy Efficiency: They consume less power compared to traditional lighting sources, making them more energy-efficient and cost-effective in the long run.
Long Lifespan: LED technology has a long operational life, typically lasting tens of thousands of hours, reducing maintenance costs and downtime.
Vivid Colors and Contrast: LED technology enables vibrant colors and high contrast ratios, enhancing visual impact and clarity of displayed content.
Instant On/Off: They have instant on/off capability, eliminating warm-up time and allowing for quick content changes.
Dynamic Content: LED circular screens support dynamic content display, including videos, animations, and real-time information, making them ideal for advertising and public information dissemination.
