Small Pixel Pitch P3 Led Screen Display Full Colour SMD2121 Indoor OEM
| Place of Origin | SHENZHEN |
|---|---|
| Brand Name | HSCX |
| Certification | CE ROHS FCC |
| Model Number | P3 |
| Minimum Order Quantity | 1set |
| Packaging Details | Fight case/Wooden case/Honeycomb Box |
| Delivery Time | 20-35 workdays |
| Payment Terms | L/C, T/T, D/A |
| Supply Ability | 1000Set |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Produce Name | COB LED Display | Pixels | 3mm |
|---|---|---|---|
| LED Type | SMD2121 | Pixel Density | 11111Pixel/m2 |
| Module Size | 192*192mm | Cabinet Dimension | Customized |
| IP Grade | IP31 | Refresh Rate | 1920-3840hz |
| Viewing Angle | 160°/160° | Brightness | ≥1000cd/m² |
| Used | Indoor Mounted On The Wall | Screen Size | Customized |
| Highlight | Pixel Pitch p3 led screen,OEM p3 led screen,p3 smd Display |
||
Product Description
full colour led display small pixel pitch LED display
P3mm full colour led display HD fullcolourleddisplay

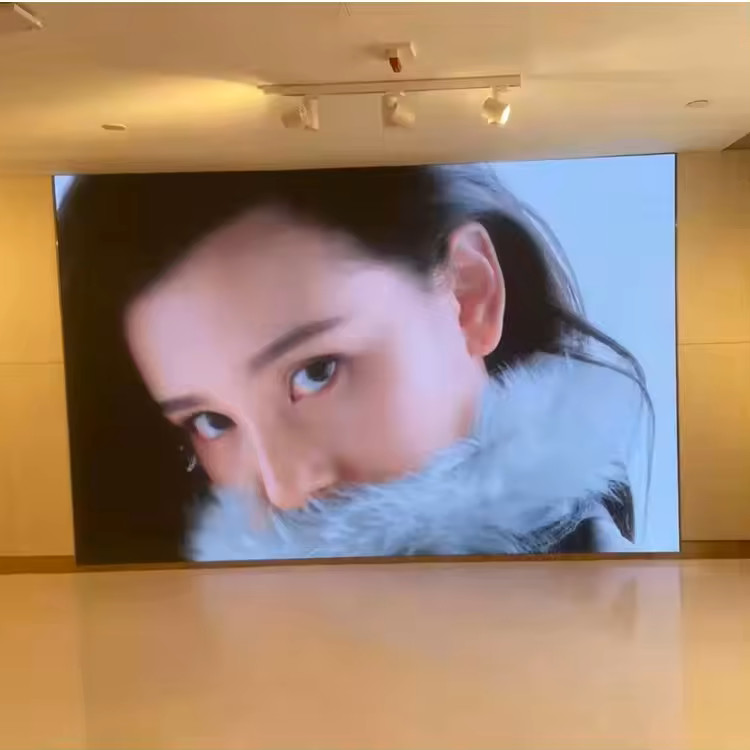

Indoor LED Display screen for Commercial Meeting Room
SMD2121 LED display screen Indoor HD LED screen LED Display
full colour led display Features:
1. Module size:320*160mm, compatible pitch:P2.5/p2/P3

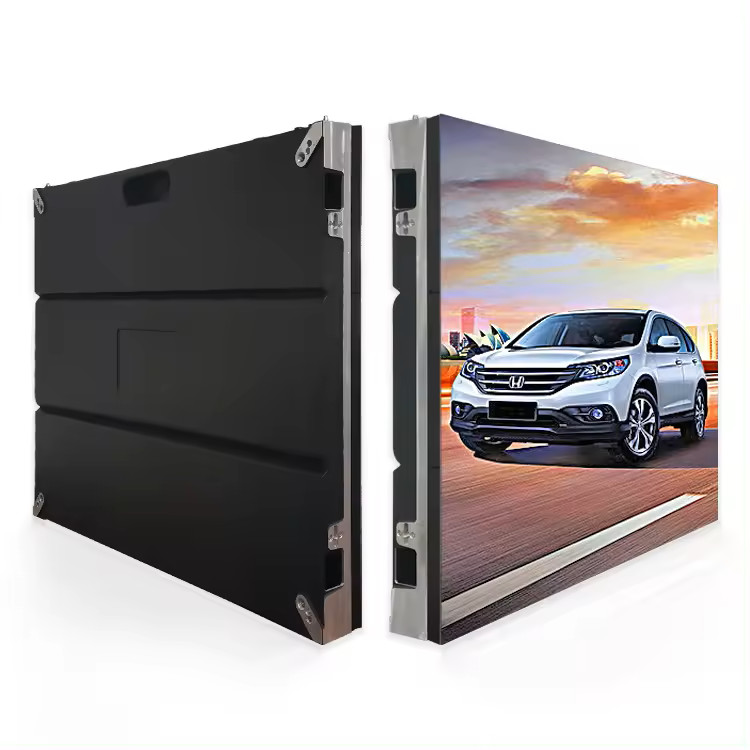

2. Cabinet size:640*480mm,640*640mm 960*480mm or customized,die-casting box.
3.Customized Service :
We can customize the product according to customers' needs, you just need to provide the requirements details and also specify the lamp bead brand, ic brand.
4. Installation Support:
Diversified installation and high protection level . In addition, we have processional technical engineer provide remote assistance.
5. Quality Assurance:
Using Nationstar, Nichia, Cree,Kinglight gold and Copper Wire,big size rgb chips, long service life, low failure rate;
Original pvc plastic and even aluminum material, good toughness, high and low temperature resistance, V0 grade flame retardant, UVresistant.
Parameters:
|
full colour led display indoor Led Display Specification |
|
| pixel pitch | 3 |
| lamp | SMD2121 |
| module size(W×H) | 192*192mm |
| module resolution(Pixel/m2) | 64*64 |
| physcial density(dot/m²) | 11111 |
| cabinet size(W×H) | 640*480 mm / 640*640mm / 960*480mm or customized |
| scanning mode | 1/32 |
| cabinet Material | Diecasting Aluminum |
| cabinet weight(kg) | 6.8 customized |
| best viewing distance(m) | 3 |
| gray scale(bit) | 14 |
| IP Grade | IP31 |
| viewing angle | H:160 V:160 |
| brightness | 600-900cd/㎡ |
| contrast ratio | ≥8000:1 |
| color temperature | 3200-9300k |
| refreshrate | ≥1920-3840hz |
| Maximum power | 600W/M2 |
| Average power | 200W/M2 |
| Operating temperature | -20-60℃ |
| Operating Humidity | 10-95%RH |
| Input Voltage | AC110-220V±15% 50-60Hz |
| MTBF(Hours) | 50000 |
| Life Time(Hours) | 100000 |
* We Can Make The OEM And ODM,Customize The Shape,Size And Lamp Bead Brand, IC Brand,*
Features of full colour led display:
1. Video frame rate(≥60 Hz), screen smoother.
2. Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output

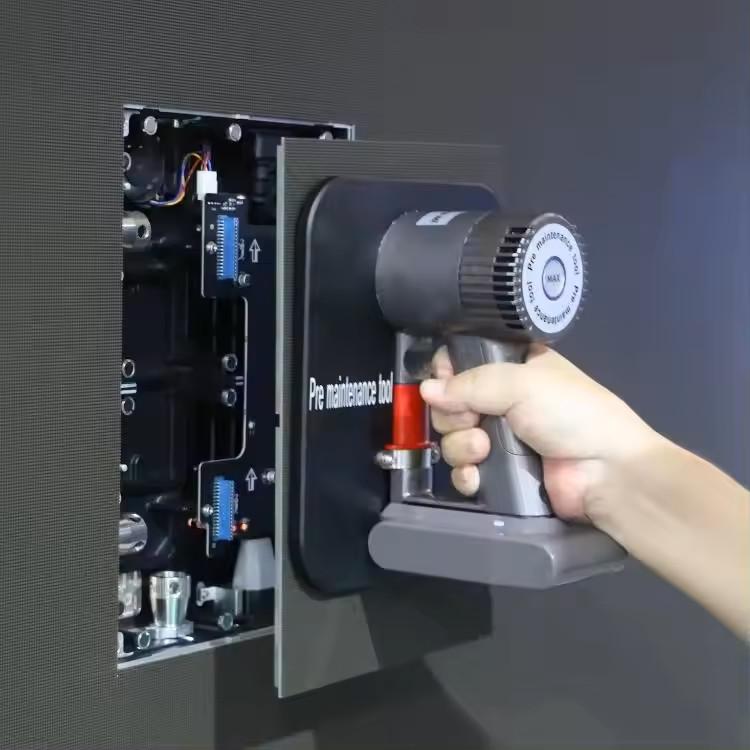

3. Front maintenance way, easy to replace module and repair components
4. Grey Level(14-16bit).
LED Chips : Nichia/Cree/Epistar/Silan/King light/Silan/KN-LIGHT All Our Brand Partners
IC : Mblock/Mingyang/Chipone/Mingwei All Our Brand Partners
Power Supply:Meanwell/Megmeet/Powerld/Rong Electronic/G-Energy All Our Brand Partners
Control Card:Novastar, Linsn, Colorlight, Huidu All Our Brand Partners
Video Processor:Novastar, Videowall All Our Brand Partners
PCB Board : Flame Retardant, Anti-Aging
Magnesium Ally Cabinet : Light Weight, Corrosion Resistance
Our Advantages+After-sell service
1. Use Novastar system, high level of video display control.
2. High contrast, rich color, looks smooth and vivid.
3. Strict quality control ability for full production process.
4.Providing free accessories, such as power and data cables wiring diagram.
5.Free remote control debuggine serice if you need.
6. Factory supply, best price and convenient to custom made.Online service of professional staff.
7. Service from professional engineers and sales team, save your time and effort.
