P3 Flexible LED Display Screen Panel Multiple Pixels FCC Certificated
| Place of Origin | SHENZHEN |
|---|---|
| Brand Name | H&S LED |
| Certification | CE ROHS FCC |
| Model Number | P3.076 |
| Minimum Order Quantity | 20pcs |
| Packaging Details | Fight case/Wooden case/Honeycomb Box |
| Delivery Time | 7-25 workdays |
| Payment Terms | L/C, T/T |
| Supply Ability | 10000PCS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | LED Soft Module | Model | P3.076 |
|---|---|---|---|
| Module Size | 320*160mm | Tube Chip Color | Full Color,1R1G1B |
| Leds | SMD2121 | Scan Mode | 1/26S |
| Brightness | 800-1000cd | Pixel Density | 105625 Pixles/sq.m |
| Working Voltage | AC110V-220V | Lifetime | ≥100,000 Hours |
| Highlight | multiple pixels Flexible Led Display,FCC Certificated Flexible Led Display,P3 flexible led screen panel |
||
Product Description
SMD2121 LED Model Soft LED display
P3.076Full colour LED display
Indoor Flexible led display
P3.076 soft Led display P3.076 LED model

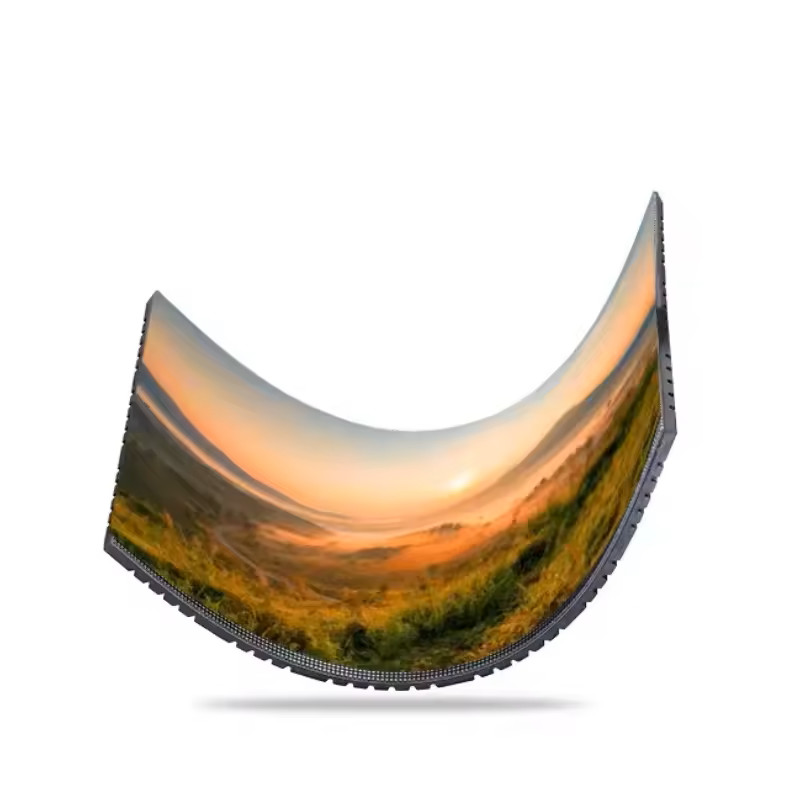

LED Flexible Screen
Good flexibility.Break through the limitation of perspective and make creative display a reality.
Creative screen, customized special-shape
Full color display,multiple pixels in series or parallel can achieve full color display.
LED Soft Screen

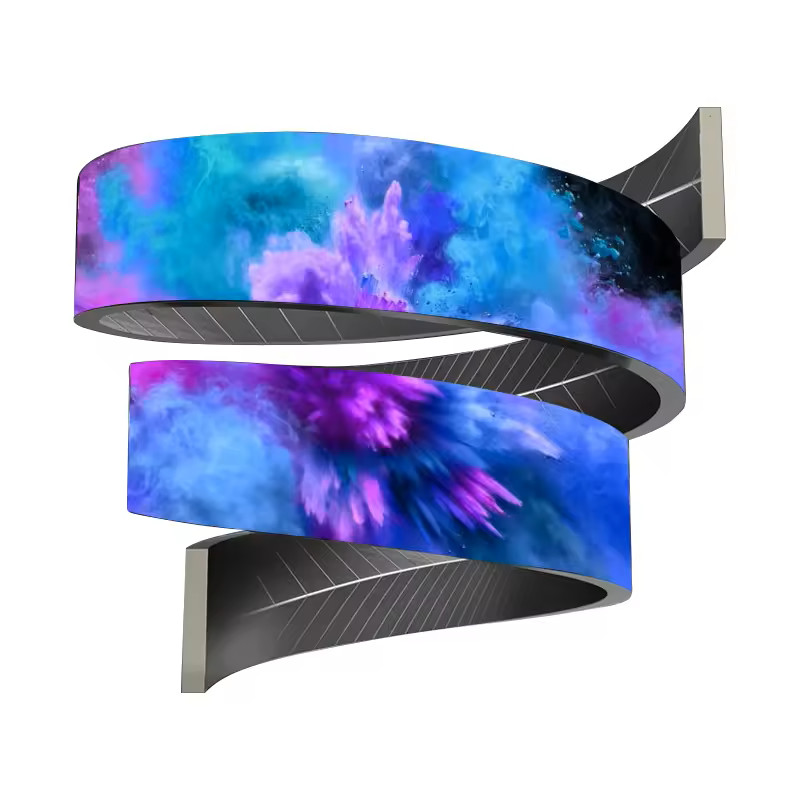

Light weight,easy installation.can be concave and convex, curved, cylinder and any irregular shape.
Parameters:
|
SMD2121 LED Model - P3.076Flexible led display
|
|
| Pixel Pitch |
3.076mm
|
|
LED Configuration
|
SMD2121
|
|
Application
|
Indoor
|
|
Pixel Density/sqm
|
105625 dots
|
|
Module Size/mm
|
320 x 160 mm
|
|
Module Resolution
|
104 x 52dots
|
|
Scan
|
1/26S
|
|
IP Rating
|
IP43
|
|
Brightness /sqm
|
800-1000 nits
|
|
Gray Scale/bit
|
16 bit
|
|
Max. Power Consumption/W
|
640 W/sqm
|
|
Ave. Power Consumption/W
|
192 W/sqm
|
|
Refresh Frequency/Hz
|
3840 Hz
|
| Humidity(working) | 10-95% |
| Temperature | -20-60℃ |
|
Working voltage
|
AC 220±10% or 110±10%
|
|
Operating Life
|
100,000Hours
|

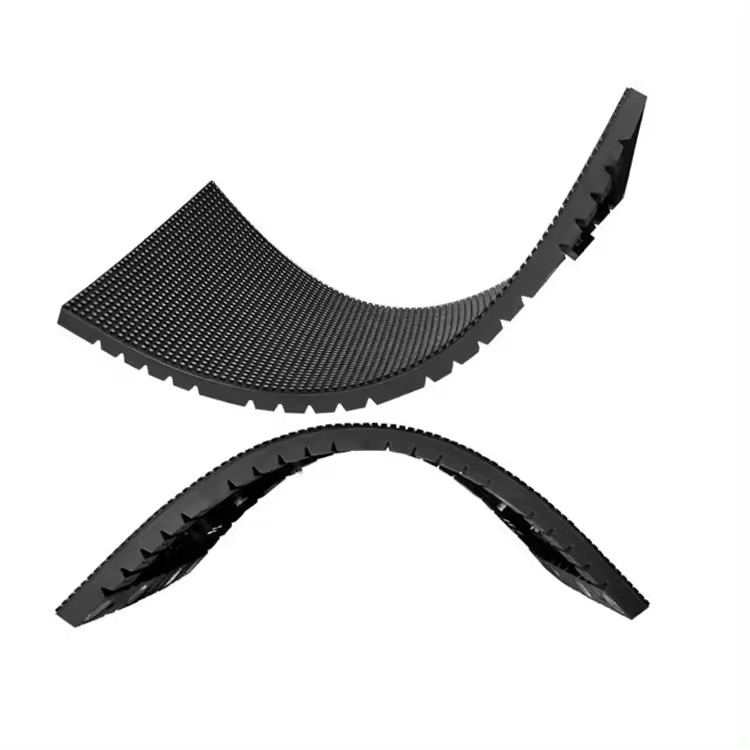

Easily Build Concave & Convex Curves:
Spice up your imaging landscape via seamless convex or concave curved video walls with angles, curves and just about any other creative design.

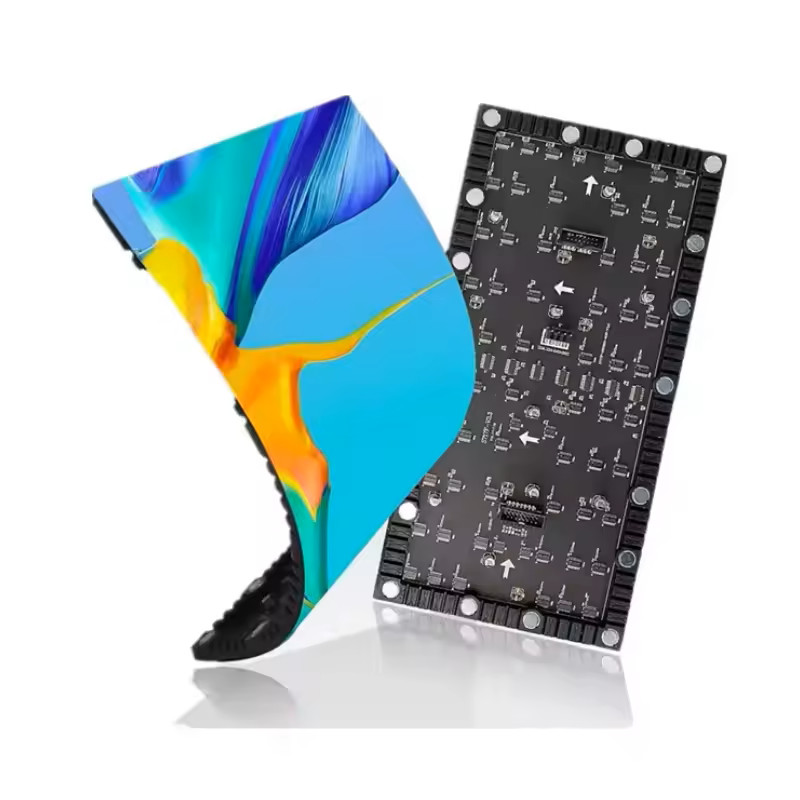

Front & Rear Serviceability:
The module can be maintained and disassembled from the front & rear end, Single module replacement is made easy, improving serviceability in the field.
Magnetic Design
Magnetic mounts allow for attachment to virtually any surface enabling the most creative LED designs.
Reliable Data & Power Management:
External sending and receiving control, paired with quality connectors, guarantee safe and reliable connections between each Adaptive LED tile where traditional
flat LED panels are not applicable, Keeping construction of the final product slim, lightweight, and compact.
