Creative Full Color Flexible Oled Panel Screen Wall Soft Module Customized

Product Details

Place of Origin: SHENZHEN

Brand Name: H&S LED

Certification: CE ROHS FCC

Model Number: P2

Payment & Shipping Terms

Minimum Order Quantity: 20pcs

Packaging Details: Fight case/Wooden case/Honeycomb Box

Delivery Time: 7-25 workdays

Payment Terms: L/C, T/T

Supply Ability: 10000PCS

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Full Color flexible oled panel, Creative flexible oled panel, Customized flexible led screen wall


Name:	LED Soft Module	Model:	P2
Module Size:	256*128mm	Tube Chip Color:	Full Color,1R1G1B
Leds:	SMD1515	Scan Mode:	1/48S
Brightness:	800-1000cd	Pixel Density:	250000 Pixles/sq.m
Working Voltage:	AC110V-220V	Lifetime:	≥100,000 Hours

Name:	LED Soft Module
Model:	P2
Module Size:	256*128mm
Tube Chip Color:	Full Color,1R1G1B
Leds:	SMD1515
Scan Mode:	1/48S
Brightness:	800-1000cd
Pixel Density:	250000 Pixles/sq.m
Working Voltage:	AC110V-220V
Lifetime:	≥100,000 Hours

Product Description

LED Flexible Screen

Good flexibility.Break through the limitation of perspective and make creative display a reality.

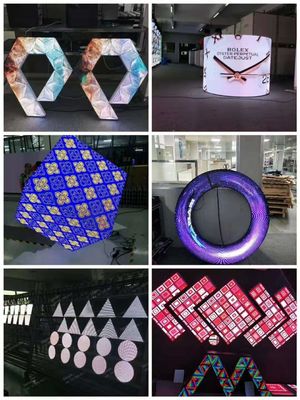

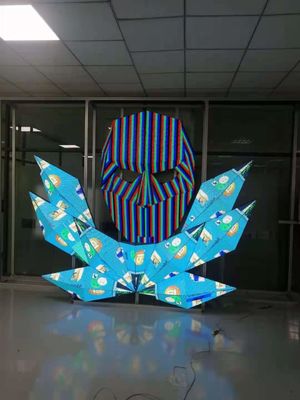

Creative screen, customized special-shape

Full color display,multiple pixels in series or parallel can achieve full color display.

LED Soft Screen

Light weight,easy installation.can be concave and convex, curved, cylinder and any irregular shape.

Parameters:

SMD2121 LED Model - P3.076Flexible led display
Pixel Pitch	3.076mm
LED Configuration	SMD2121
Application	Indoor
Pixel Density/sqm	105625 dots
Module Size/mm	320 x 160 mm
Module Resolution	104 x 52dots
Scan	1/26S
IP Rating	IP43
Brightness /sqm	800-1000 nits
Gray Scale/bit	16 bit
Max. Power Consumption/W	640 W/sqm
Ave. Power Consumption/W	192 W/sqm
Refresh Frequency/Hz	3840 Hz
Humidity(working)	10-95%
Temperature	-20-60℃
Working voltage	AC 220±10% or 110±10%
Operating Life	100,000Hours

Easily Build Concave & Convex Curves:

Spice up your imaging landscape via seamless convex or concave curved video walls with angles, curves and just about any other creative design.

Front & Rear Serviceability:

The module can be maintained and disassembled from the front & rear end, Single module replacement is made easy, improving serviceability in the field.

Magnetic Design

Magnetic mounts allow for attachment to virtually any surface enabling the most creative LED designs.

Reliable Data & Power Management:

External sending and receiving control, paired with quality connectors, guarantee safe and reliable connections between each Adaptive LED tile where traditional
flat LED panels are not applicable, Keeping construction of the final product slim, lightweight, and compact.
