220V P2 Curved Flexible Led Display Thin Screen Lightweight

Product Details

Place of Origin: SHENZHEN

Brand Name: H&S LED

Certification: CE ROHS FCC

Model Number: P2

Payment & Shipping Terms

Minimum Order Quantity: 20pcs

Packaging Details: Fight case/Wooden case/Honeycomb Box

Delivery Time: 7-25 workdays

Payment Terms: L/C, T/T

Supply Ability: 10000PCS

Get Best Price
Product Details
Highlight:

Curved Flexible Led Display

,

220V P2 Flexible Led Display

,

Lightweight thin flexible led screen

Name:
LED Soft Module
Model:
P2
Module Size:
320*160mm
Tube Chip Color:
Full Color,1R1G1B
Leds:
SMD1515
Scan Mode:
1/40S
Brightness:
800-1000cd
Pixel Density:
250000 Pixles/sq.m
Working Voltage:
AC110V-220V
Lifetime:
≥100,000 Hours
Name:
LED Soft Module
Model:
P2
Module Size:
320*160mm
Tube Chip Color:
Full Color,1R1G1B
Leds:
SMD1515
Scan Mode:
1/40S
Brightness:
800-1000cd
Pixel Density:
250000 Pixles/sq.m
Working Voltage:
AC110V-220V
Lifetime:
≥100,000 Hours
Product Description

SMD1515 LED Model Soft LED display

P2 Full colour LED display

Indoor Flexible led display

P2soft Led display  P2LED model

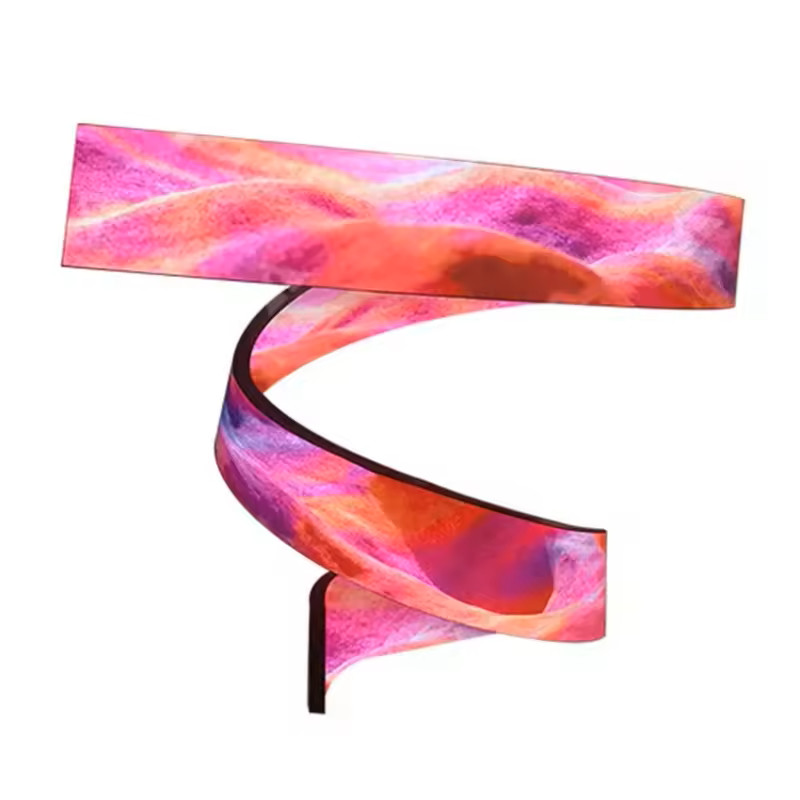

LED Flexible Screen
Good flexibility.Break through the limitation of perspective and make creative display a reality.

Creative screen, customized special-shape
Full color display,multiple pixels in series or parallel can achieve full color display.

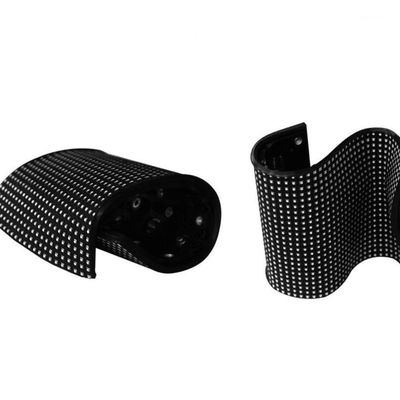

LED Soft Screen

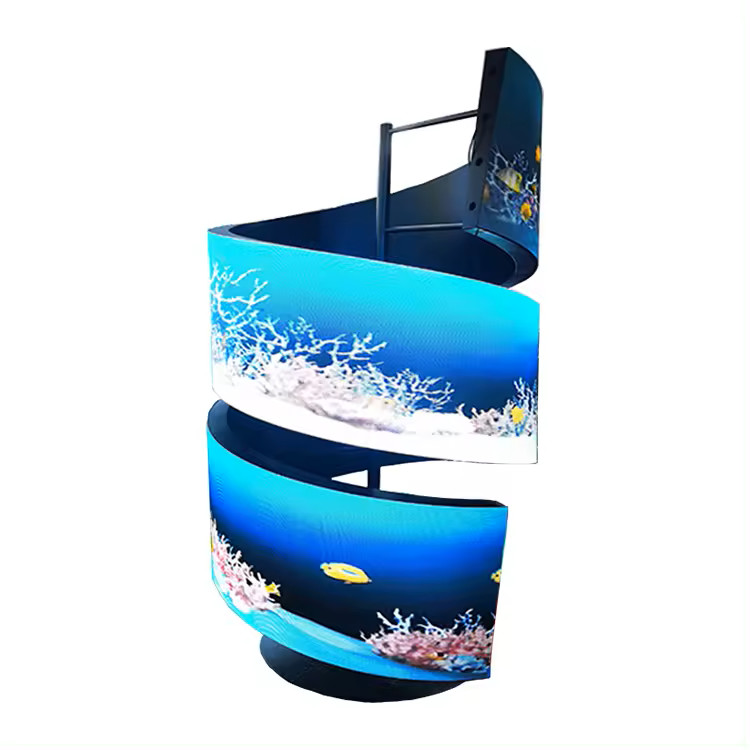

Light weight,easy installation.can be concave and convex, curved, cylinder and any irregular shape.



Parameters:

SMD1515 LED Model - P2Flexible led display
Pixel Pitch
2mm
LED Configuration
SMD1515
Application
Indoor
Pixel Density/sqm
250000 dots
Module Size/mm
320 x 160 mm
Module Resolution
160 x 80dots
Scan
1/40S
IP Rating
IP43
Brightness /sqm
800-1000 nits
Gray Scale/bit
16 bit
Max. Power Consumption/W
640 W/sqm
Ave. Power Consumption/W
192 W/sqm
Refresh Frequency/Hz
3840 Hz
Humidity(working) 10-95%
Temperature -20-60℃
Working voltage
AC 220±10% or 110±10%
Operating Life
100,000Hours



Easily Build Concave & Convex Curves:


Spice up your imaging landscape via seamless convex or concave curved video walls with angles, curves and just about any other creative design.



Front & Rear Serviceability:


The module can be maintained and disassembled from the front & rear end, Single module replacement is made easy, improving serviceability in the field.

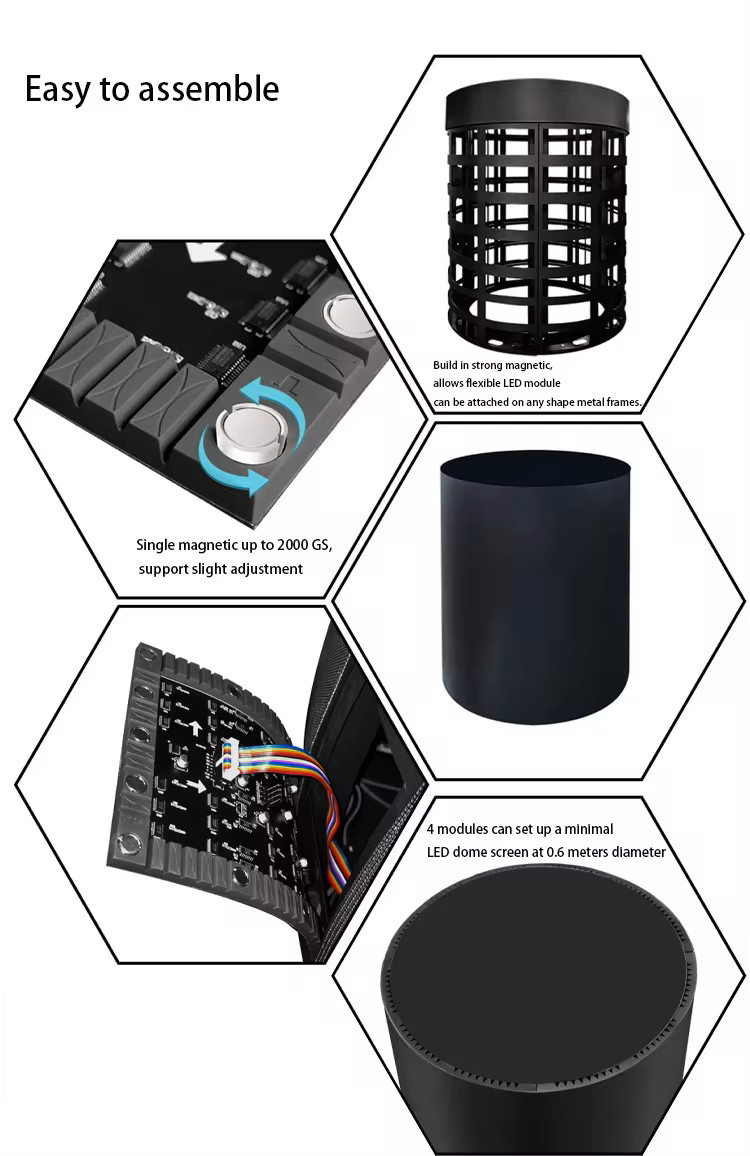

Magnetic Design


Magnetic mounts allow for attachment to virtually any surface enabling the most creative LED designs.



Reliable Data & Power Management:


External sending and receiving control, paired with quality connectors, guarantee safe and reliable connections between each Adaptive LED tile where traditional
flat LED panels are not applicable, Keeping construction of the final product slim, lightweight, and compact.
