RGB Full Color Flexible Transparent Led Screen Soft Module P1.875
Product Details:
Place of Origin: | SHENZHEN |
Brand Name: | HSCX |
Certification: | CE ROHS FCC |
Model Number: | P1.875 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Packaging Details: | Fight case/Wooden case/Honeycomb Box |
Delivery Time: | 7-15 workdays |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000Set |
Detail Information |
|||
Name: | Flexible Led Display | Pixels: | 1.875mm |
---|---|---|---|
Application: | Indoor | Model Size: | 240*120mm |
LED Chip: | SMD1515 | Refresh Rate: | 3840Hz |
Brightness: | 1000 Cd/m2 | Led Color: | RGB Full Color |
Best Viewingangle: | (Horizontal/Vertical)140 /140 | Best Viewing Distance: | ≥1.8m |
Highlight: | RGB flexible transparent led screen,P1.875 flexible transparent led screen,RGB led flex screen |
Product Description
LED flexible screen (LED Soft Screen):
Suitable for cylindrical design of units, shopping malls, bars, stage backgrounds, exhibition halls, planning exhibition halls, etc;
Soft, lightweight, suitable for any bending effect;
Flexible, lightweight, easy to install and maintain;
Can be bent, folded, wrapped, suspended, etc., freely combined into various shapes, artistic and creative;
Unrestricted scenario applications with good creative effects;
There are a wide variety of products and multiple models to choose from;
The PCB is made of flexible soft boards, with rubber used for face shields and bottom shells;
360 degree visual angle, fully showcasing streamlined appearance and seamless splicing;
High grayscale, high refresh rate, and higher definition energy-saving images.
Products Description-Indoor Flexible led display
|
||||||||
Pixel Pitch |
1.25mm
|
1.579mm
|
1.667mm
|
1.86mm
|
2mm
|
2.5mm
|
3mm
|
4mm
|
LED Configuration
|
SMD1010
|
SMD1212
|
SMD1212
|
SMD1212
|
SMD1515
|
SMD1515
|
SMD1515
|
SMD2020
|
Application
|
Indoor
|
Indoor
|
Indoor
|
Indoor
|
Indoor
|
Indoor
|
Indoor
|
Indoor
|
Pixel Density/sqm
|
640000dots
|
401111 dots
|
360000
|
288906 dots
|
250000 dots
|
160000 dots
|
11111 dots
|
62500 dots
|
Module Size/mm
|
320 x 160 mm
|
240 x 120 mm
|
320 x 160 mm
|
320 x 160 mm
|
320 x 160 mm
|
320 x 160 mm
|
320 x 160 mm
|
320 x 160 mm
|
Module Resolution
|
256 x 128 dots
|
152 x76dots
|
192 x 96 dots
|
172 x 86 dots
|
160 x 80 dots
|
128 x 64 dots
|
104 x 52 dots
|
80 x 40 dots
|
Scan
|
1/64S
|
1/52S
|
1/48S
|
1/43S
|
1/40S
|
1/32S
|
1/26S
|
1/20S
|
IP Rating
|
IP43
|
|||||||
Brightness /sqm
|
800-1000 nits
|
|||||||
Gray Scale/bit
|
16 bit
|
|||||||
Max. Power Consumption/W
|
640 W/sqm
|
|||||||
Ave. Power Consumption/W
|
192 W/sqm
|
|||||||
Refresh Frequency/Hz
|
3840 Hz
|
|||||||
Working voltage
|
AC 220±10% or 110±10%
|
|||||||
Operating Life
|
100,000Hours
|
Features:
1. High flexibility
Tailored according to needs, the module has extremely high flexibility and a curvature of less than 90 °;
2. Sturdy structure
The box body adopts a die stamping and folding process, with high strength; CNC precision machining, precise size and good consistency;
3. Brightness adjustable
Using specialized technology and devices, adjusting display brightness through hardware/software implementation methods without sacrificing the grayscale of the image;
4. Ultra wide viewing angle
Both horizontal and vertical viewing angles can reach 140 °, and high-quality display effects can be seen from all angles;
5. High protection
High standard, dust-proof, moisture-proof, and corrosion-resistant process treatment, suitable for long-term use in harsh outdoor environments;
6. Easy to maintain
The design of the rear door of the box allows for front/rear maintenance of the module;
7. Standardization
Adopting standardized modules and boxes for quick and convenient installation;
8. Energy saving environment
Excellent heat dissipation performance, low power consumption, and high stability;
Tailored according to needs, the module has extremely high flexibility and a curvature of less than 90 °;
2. Sturdy structure
The box body adopts a die stamping and folding process, with high strength; CNC precision machining, precise size and good consistency;
3. Brightness adjustable
Using specialized technology and devices, adjusting display brightness through hardware/software implementation methods without sacrificing the grayscale of the image;
4. Ultra wide viewing angle
Both horizontal and vertical viewing angles can reach 140 °, and high-quality display effects can be seen from all angles;
5. High protection
High standard, dust-proof, moisture-proof, and corrosion-resistant process treatment, suitable for long-term use in harsh outdoor environments;
6. Easy to maintain
The design of the rear door of the box allows for front/rear maintenance of the module;
7. Standardization
Adopting standardized modules and boxes for quick and convenient installation;
8. Energy saving environment
Excellent heat dissipation performance, low power consumption, and high stability;

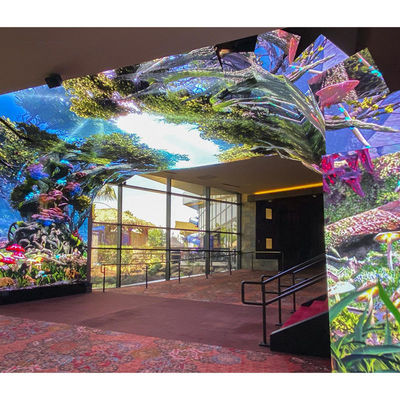

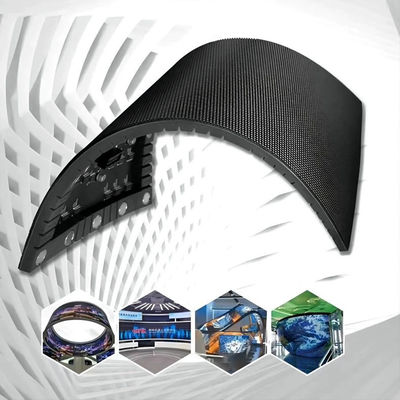

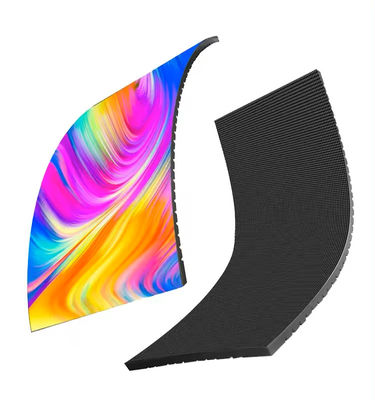

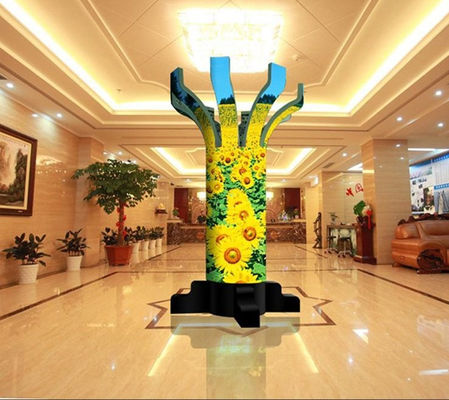

Product Pictures:
