ROHS Indoor LED Display SMD Screen for Conference Room Exhibition hall
| Place of Origin | shenzhen,China |
|---|---|
| Brand Name | H&S LED |
| Certification | CE ROHS FCC |
| Model Number | P1.86 |
| Minimum Order Quantity | 1set |
| Packaging Details | Fight case/Wooden case/Honeycomb Box |
| Delivery Time | 15-35 workdays |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 m2 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | P2 LED | LEDType | SMD1515 |
|---|---|---|---|
| Physical Density | 160000 Dot/m² | Module Size | 320*160*17mm |
| Scanning Mode | 1/32S | Grey Scale (Bit) | 14 |
| Max Refresh Rate | ≥3840Hz | Cabinet Material | Die Casting Aluminum |
| Highlight | Conference Room Indoor LED Display,ROHS Indoor LED Display,ROHS smd led display screen |
||
Product Description
Fixed Pitch Indoor Full-Color P1.8Mm 2.5Mm Led Billboards Mall Advertising Digital Signage And Displays LED Screen P2.5
*Die casting aluminum panel
* Panel Size: 640*480mm/256*192pixel
* High brightness 3840Hz refresh rate.
* Nova star/Colorlight/Linsn control system indoor outdoor led screen
* Specially use for TV studio, conference center,monitoring center and cinema, museum, ect.
* Seamless connection, high contrast ratio, high refresh rate, 16 bit high gray level.
LED Display Seamless Splicing
* Slim and light weight,quick disassembly.
* Weight: 5.5kg/cabinet,one person can carry,saving time and effort.
* High degree of protection,high durability.
* Common good,flexible and easy to use.
Indoor Ultra Clear LED Screen Display
Standard cabinet size:640*480mm, Module Size:320*160mm.Good flatness of cabinet splicing, great display performance at a short
distance viewing. Adopt high performance driving IC, high refresh rate at low gray scale, high contrast ratio and great low gray
scale shifting. Support HDR
Product Features:

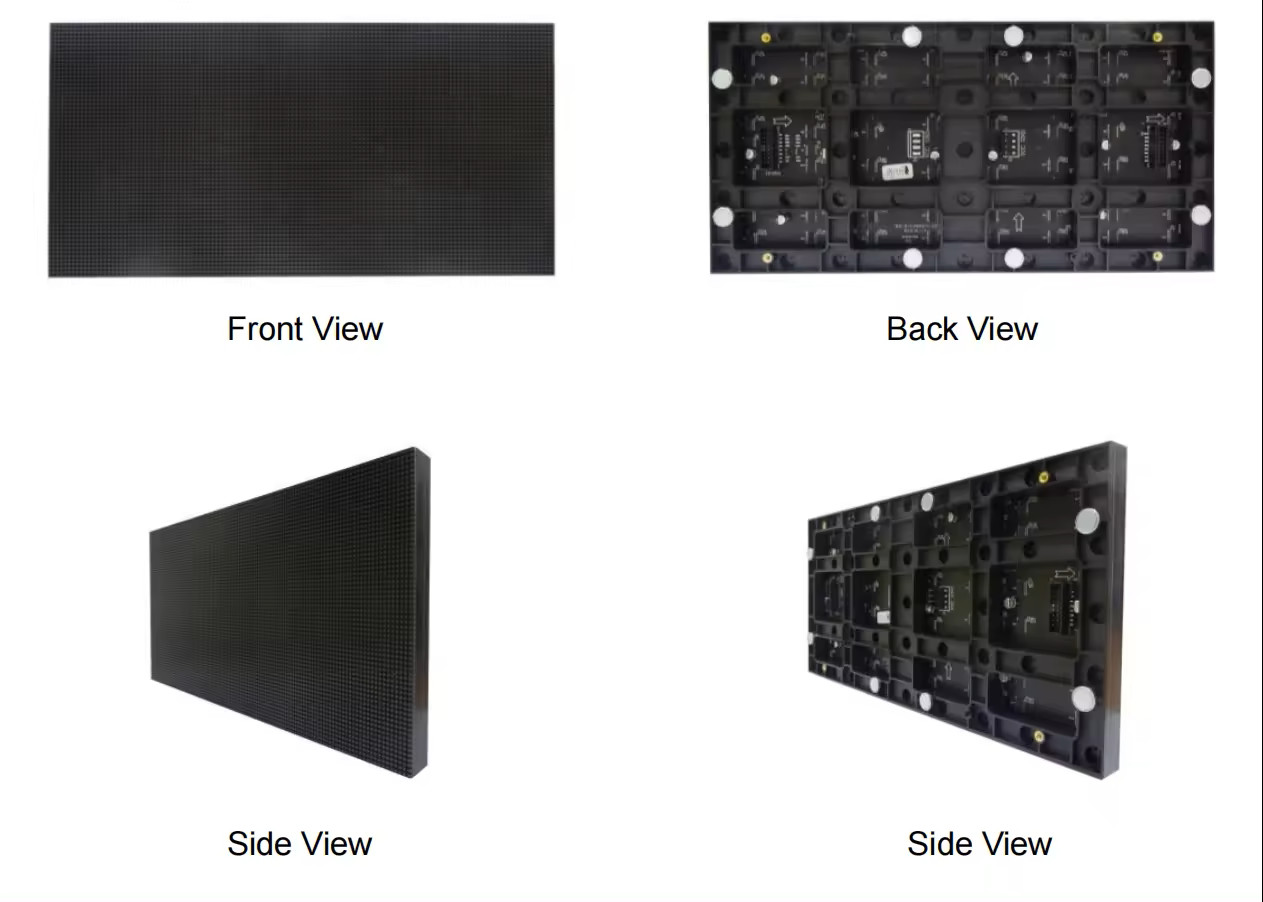

1.Module size:320x160mm, Cabinet size:640*480mm. compatible pitch: R1.86/R2/R2.5.
2.Cabinet horizontally and vertically seamless splicing, effectively reduce the interference of
visual gap, complete and coherent display performance
3.Great display performance even at a short distance viewing
4.16-channel Constant Current Driving IC, better gray scale level a
5.High refresh rate. Nature gray scale shifting, reduce shooting stripes effectively
Specification:
|
Model
|
P1.25
|
P1.86
|
P2
|
|
LEDType
|
SMD1515
|
SMD1515
|
SMD1515
|
|
Physical Density (dot/m²)
|
640000
|
289050
|
160000
|
|
Module Size (W ×H ×D) mm
|
320x160x17
|
320x160x17
|
320x160x17
|
|
Module Resolution(W×H)
|
256x128
|
172x86
|
128x64
|
|
Cabinet Size (W ×H ×D) mm
|
640x480x74
|
640x480x74
|
640x480x74
|
|
Cabinet Material
|
Die Casting Aluminum
|
Die Casting Aluminum
|
Die Casting Aluminum
|
|
Scanning Mode
|
1/64
|
1/48
|
1/32
|
|
Cabinet Flatness(mm)
|
≤0.10
|
≤0.10
|
≤0.10
|
|
Grey Scale (Bit)
|
14
|
14
|
14
|
|
Protection Level
|
IP45
|
IP45
|
IP45
|
|
Brightness(cd/㎡)
|
500-900cd/㎡
|
500-900cd/㎡
|
500-900cd/㎡
|
|
ColorTemperature
|
3200-9300Kadjustable
|
3200-9300Kadjustable
|
3200-9300Kadjustable
|
|
Brightness Uniformity
|
≥98%
|
≥98%
|
≥98%
|
|
Horizontal/Vertical ViewAngle
|
≥140°/≥120°
|
≥140°/≥120°
|
≥140°/≥120°
|
|
Contrast Ratio
|
≥5000:1
|
≥5000:1
|
≥5000:1
|
|
Module Input Voltage DC
|
5V
|
5V
|
5V
|
|
Max Refresh Rate
|
≥3840Hz
|
≥3840Hz
|
≥3840Hz
|
|
Input VoltageAC
|
110-220V
|
110-220V
|
110-220V
|
|
Cabinet Max Power Consumption
|
≤600W/m2
|
≤580W/m2
|
≤480W/m2
|
|
Cabinet Aver.PowerConsumption
|
≤200W/m2
|
≤180W/m2
|
≤160W/m2
|
|
Working Temperature
|
20℃～+80℃
|
20℃～+80℃
|
20℃～+80℃
|
|
Working Humidity
|
10%～95%RH
|
10%～95%RH
|
10%～95%RH
|
|
Installation/Service Method
|
Front installation/Front service
|
Front installation/Front service
|
Front installation/Front service
|
More Applications:

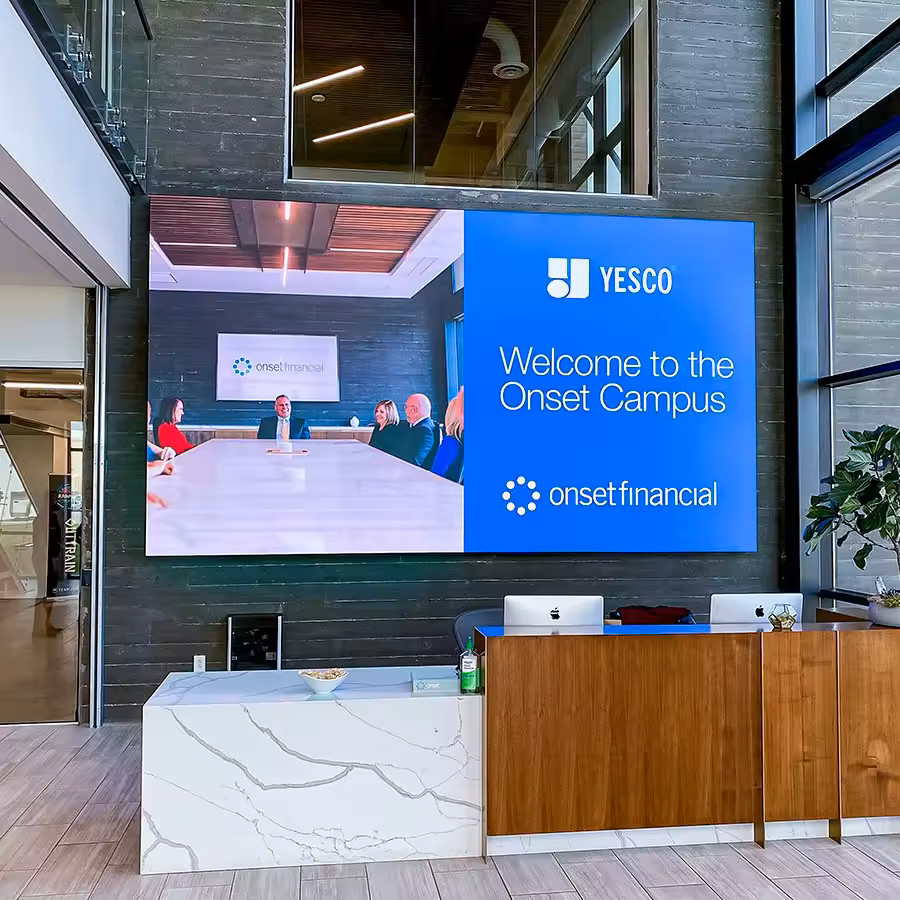

Hotel venue screen.
Monitoring command center
Sales center
Exhibition center
