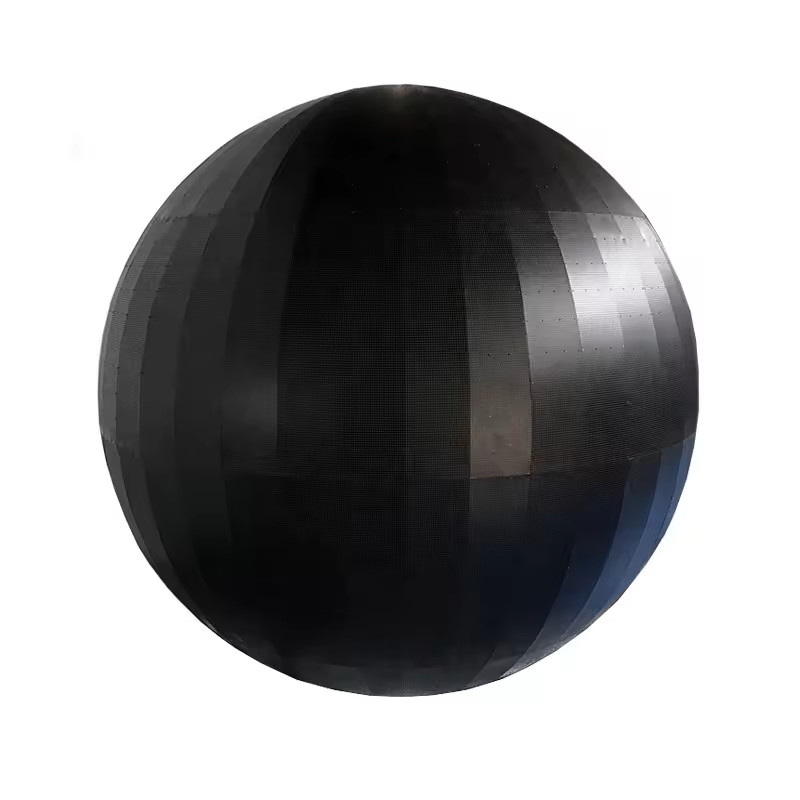

Seamless Ball Led Sphere Screen Display 1m P2 Wall Mounted
Product Details:
Place of Origin: | SHENZHEN |
Brand Name: | HSCX |
Certification: | CE ROHS FCC |
Model Number: | P2 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | Fight case/Wooden case/Honeycomb Box |
Delivery Time: | 25-45 workdays |
Payment Terms: | L/C, T/T |
Supply Ability: | 10Set |
Detail Information |
|||
Name: | LED Ball Screen | Model: | P2 LED Full Color |
---|---|---|---|
Pixels: | 2mm | Use: | Indoor |
Brightness: | ≥1200cd/m² | Average Power Consumption: | ≤250w/m² |
Best Viewing Angle: | H:160° V:140° | Refresh Rate: | 3840HZ |
Grey Scale: | 14-16bit | Working Temperature: | -20°~+50° |
Operating Voltage: | DC110V-220V | ||
Highlight: | Seamless led sphere screen,Wall Mounted led sphere screen,Seamless ball led display |
Product Description
Features:
1.360 degree viewing angle,can play any video or images on the surface of the sphere
2.The diameter and pixel pitch can be customized according to clients' requirement.The sphere frame is made by precise CNC machine.And with precise module size to ensure seamless assembling
3.LED sphere display is light weight,wind resistant,good heat dissipation,and can be front service, fanless quiet design
Usage
|
indoor
|
indoor
|
indoor
|
indoor
|
NO. | P1.5 | P1.8 | P2 | P2.5 |
Pixel Pitch
|
1.8mm
|
2.5mm
|
3mm
|
|
LED Type
|
SMD1010
|
SMD1212
|
SMD1515
|
SMD1515
|
Physical Density
|
640000dot/m²
|
289050 dot/m²
|
250000 dot/m²
|
160000 dot/m²
|
Scanning Mode
|
1/52
|
1/43
|
1/40
|
1/32
|
Module Size | Customized | |||
Spherical diameter
|
0.8m/1m/1.2m/1.5m/1.8m/2m/2.5m/3m/4m/5m/6m(Arbitrary diameter)
|
|||
Panel Material
|
iron
|
|||
Panel Weight
|
Customized
|
|||
Panel Flatness
|
≤0.10 mm
|
|||
Brightness
|
≥800 cd/㎡
|
|||
Viewing Angle
|
≥140° (H) / 140° (V)
|
|||
Refresh Rate
|
1920-3840Hz
|
|||
Input Voltage AC
|
110~220V
|
|||
Max. Power Consumption
|
≤600 w/㎡
|
|||
Ave. Power Consumption
|
≤200 w/㎡
|
|||
Maintenance | Front/Back service | |||
Ingress Protection | Indoor Front:IP35,Back:IP35 | |||
Working Voltage | Input AC 100V-240V,50Hz/60Hz, 0utput: DC 5V | |||
Working Temperature
|
-10℃~+40℃
|
|||
Working Humidity
|
10%~90%RH
|
|||
Lifespan
|
≥100,000 hrs
|
