Shenzhen H&S Innovation Technology Co., Ltd info@hscxled.com 86-136-7013-8771
Product Details
Place of Origin: SHENZHEN
Brand Name: HSCX
Certification: CE ROHS FCC
Model Number: P1.5-P4
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Fight case/Wooden case/Honeycomb Box
Delivery Time: 25-45 workdays
Payment Terms: L/C, T/T
Supply Ability: 10Set
Name: |

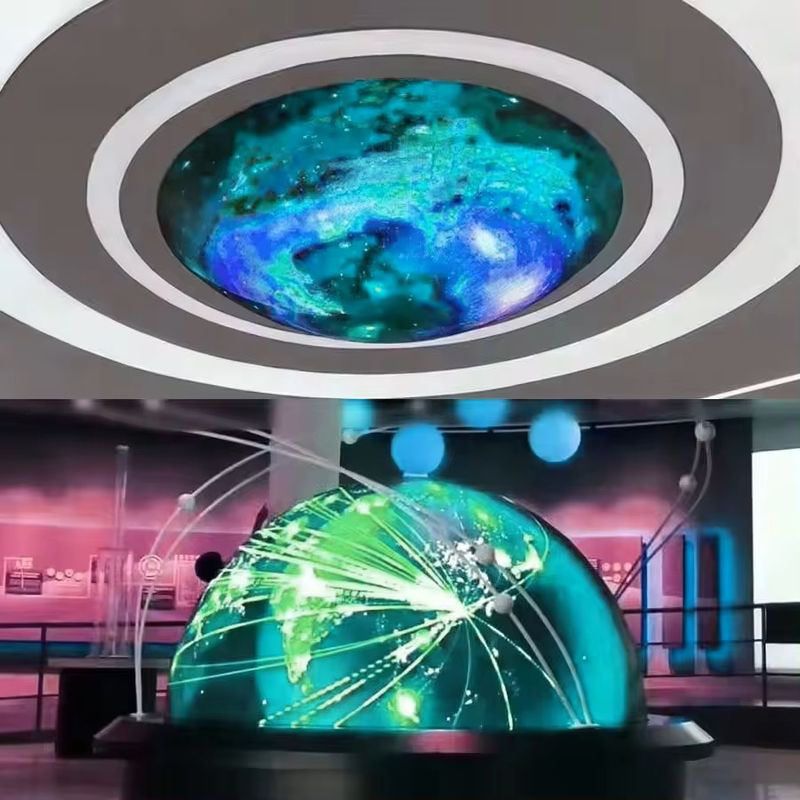

LED Ball Screen |
Model: |
LED Full Color |
Pixels: |
1.5/1.8/2/2.5mm |
Use: |
Indoor |
Module Size: |
Customized |
Spherical Diameter: |
Customized |
Brightness: |
800-1000cd/sqm |
Refresh Rate: |
3840HZ |
Grey Scale: |
14-16bit |
Working Temperature: |
-20°~+50° |
Operating Voltage: |
DC110V-220V |
Installation: |
Hanging/Stacking/Floor Standing |
Media Available: |
Photo, EDA/CAD Models, Other |
Name: |
LED Ball Screen |
Model: |
LED Full Color |
Pixels: |
1.5/1.8/2/2.5mm |
Use: |
Indoor |
Module Size: |
Customized |
Spherical Diameter: |
Customized |
Brightness: |
800-1000cd/sqm |
Refresh Rate: |
3840HZ |
Grey Scale: |
14-16bit |
Working Temperature: |
-20°~+50° |
Operating Voltage: |
DC110V-220V |
Installation: |
Hanging/Stacking/Floor Standing |
Media Available: |
Photo, EDA/CAD Models, Other |
Usage
|
indoor
|
indoor
|
indoor
|
indoor
|
NO. | P1.5 | P1.8 | P2 | P2.5 |
Pixel Pitch
|
1.8mm
|
2.5mm
|
3mm
|
|
LED Type
|
SMD1010
|
SMD1212
|
SMD1515
|
SMD1515
|
Physical Density
|
640000dot/m²
|
289050 dot/m²
|
250000 dot/m²
|
160000 dot/m²
|
Scanning Mode
|
1/52
|
1/43
|
1/40
|
1/32
|
Module Size | Customized | |||
Spherical diameter
|
0.8m/1m/1.2m/1.5m/1.8m/2m/2.5m/3m/4m/5m/6m(Arbitrary diameter)
|
|||
Panel Material
|
iron
|
|||
Panel Weight
|
Customized
|
|||
Panel Flatness
|
≤0.10 mm
|
|||
Brightness
|
≥800 cd/㎡
|
|||
Viewing Angle
|
≥140° (H) / 140° (V)
|
|||
Refresh Rate
|
1920-3840Hz
|
|||
Input Voltage AC
|
110~220V
|
|||
Max. Power Consumption
|
≤600 w/㎡
|
|||
Ave. Power Consumption
|
≤200 w/㎡
|
|||
Maintenance | Front/Back service | |||
Ingress Protection | Indoor Front:IP35,Back:IP35 | |||
Working Voltage | Input AC 100V-240V,50Hz/60Hz, 0utput: DC 5V | |||
Working Temperature
|
-10℃~+40℃
|
|||
Working Humidity
|
10%~90%RH
|
|||
Lifespan
|
≥100,000 hrs
|
