Flexible P2.5 1.2m Sphere Ball Led Display Screen SMD1515
Product Details:
Place of Origin: | shenzhen,China |
Brand Name: | H&S LED |
Certification: | CE ROHS FCC |
Model Number: | P2.5 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Packaging Details: | Fight case/Wooden case/Honeycomb Box |
Delivery Time: | 25-45 workdays |
Payment Terms: | L/C, T/T |
Supply Ability: | 50Set/30DAY |
Detail Information |
|||
Name: | LED Ball Screen | LED: | SMD1515 |
---|---|---|---|
Pixel Pitch: | 2.5mm | Resolution: | 160000dot/SQM |
Module Size: | Customized | Spherical Diameter: | 1.2m |
Brightness: | 800-1000cd/sqm | Refresh Rate: | 3840Hz |
Input Voltage AC: | 110~220V | Installation: | Hanging/Stacking/Floor Standing |
Media Available: | Photo, EDA/CAD Models, Other | Use: | Advertising Publish, Welcome Display |
Highlight: | 1.2m ball led display,SMD1515 ball led display,1.2m sphere led screen |
Product Description
Shaped LED Spherical Screen Globe Diameter 1.5m Sphere Display P2.5 LED Ball Screen
Spherical LED Display

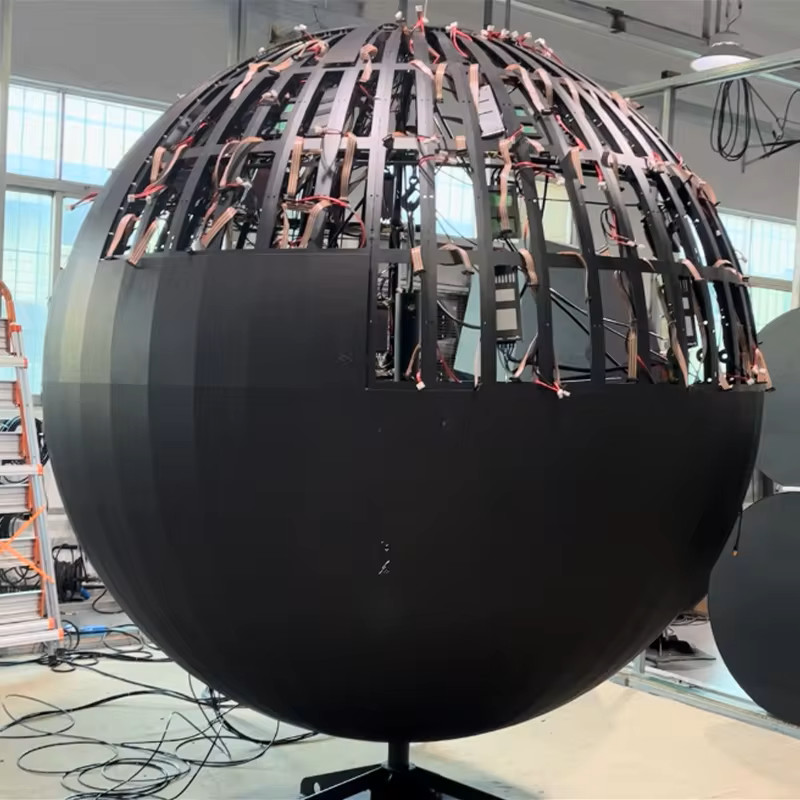

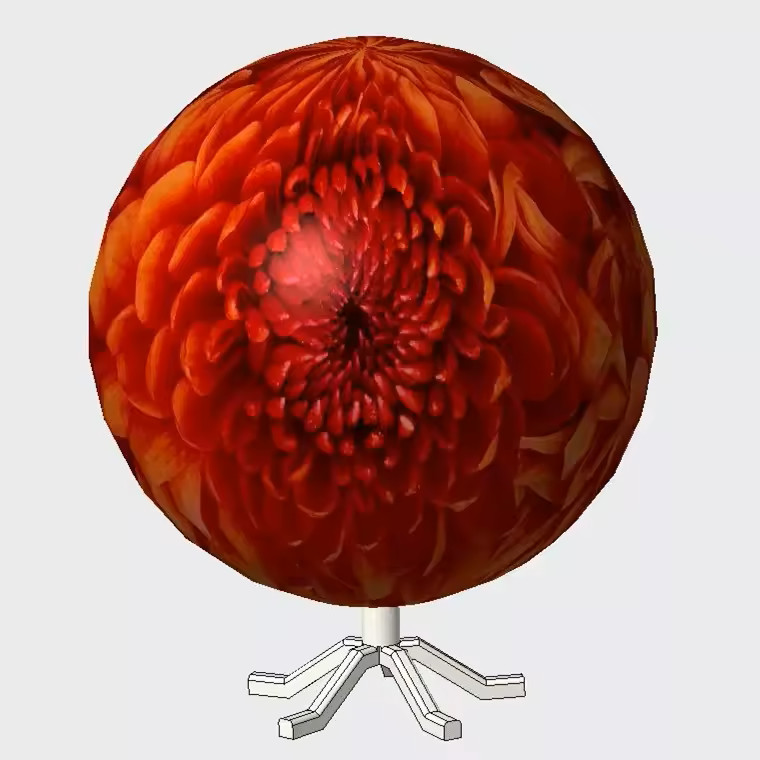

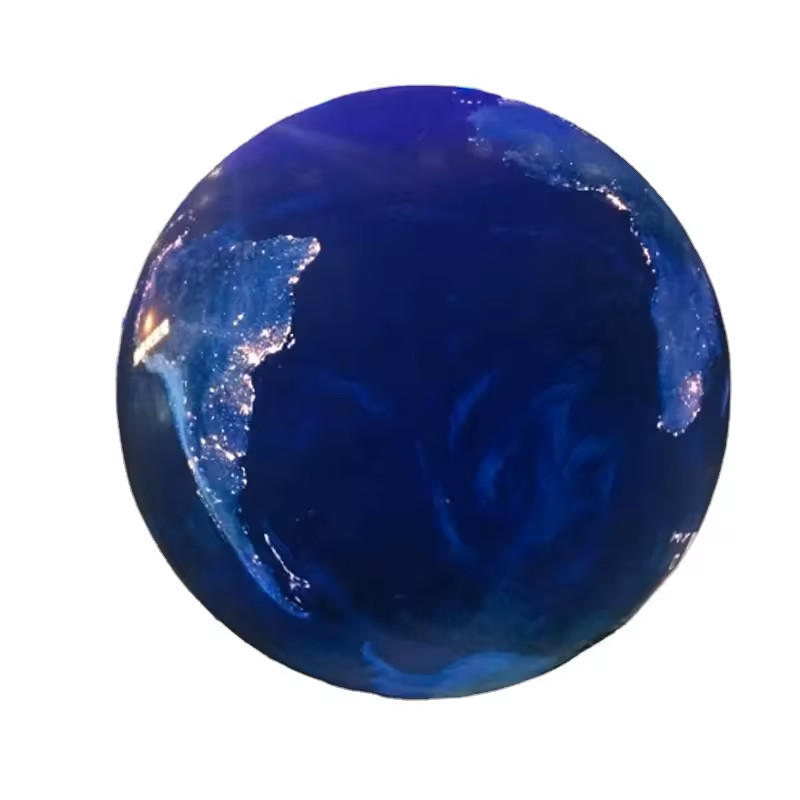

A Sphere LED display is a creative LED display, which is an important milestone in the development of LED display screen.

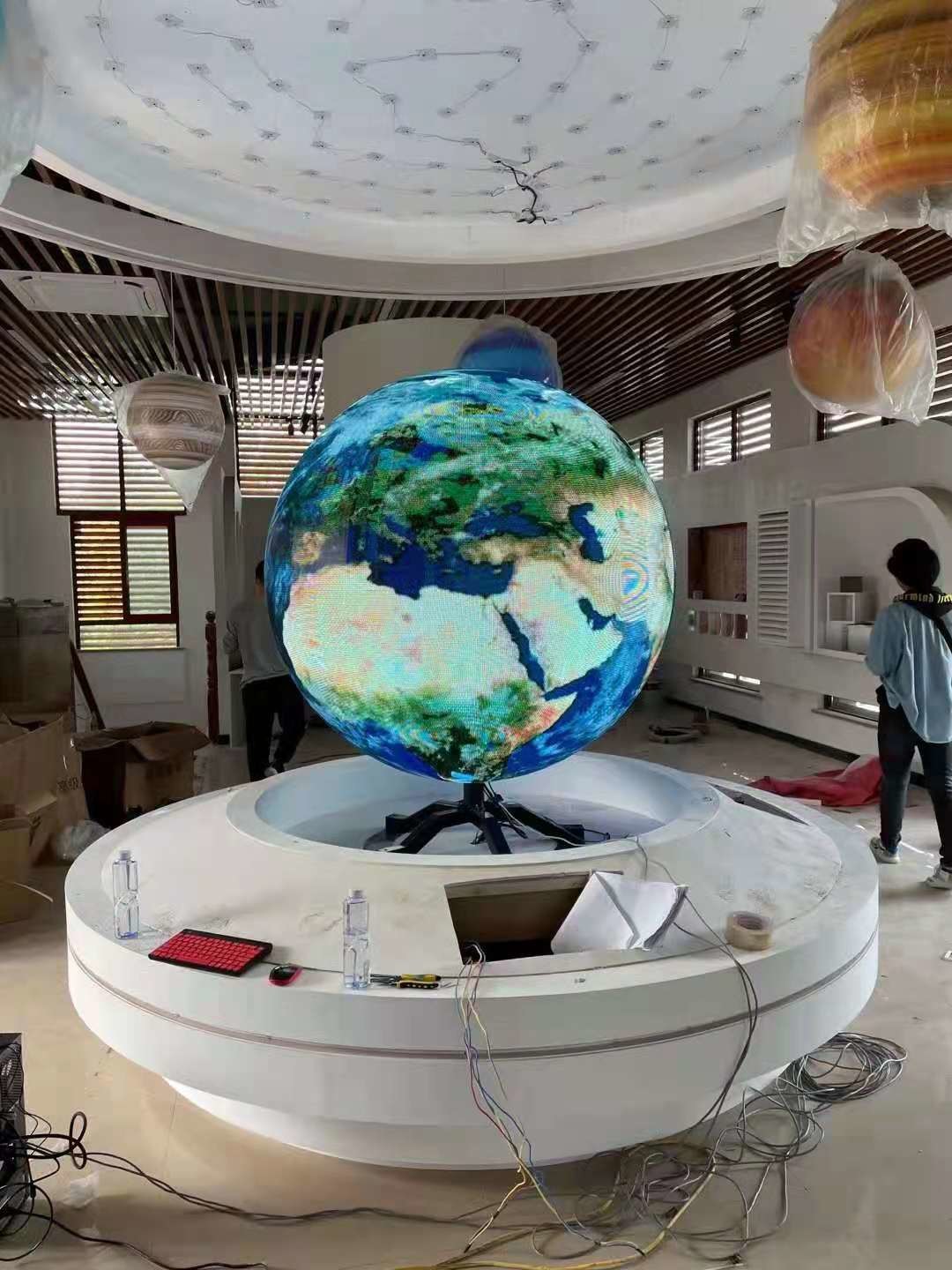

It has the characteristics of multiple splicing display, flexible shaped display, uniform display,high-definition image without distortion, etc Spherical LED display has high commercial value. It is widely used in shopping malls,science exhibitions, concerts, theaters, TV studio, creative exhibition hall and other multimedia areas.
LED Globe Display Seamless Splicing:
Our Led video ball adopts trapezoidal circuit design. Perfect for good flatness and seamless splicing with our sphere led screen. It’s high refresh rate and color uniformity for excellent visual performance with our led video ball
LED Ball Screen Uniform Tapping:
Sphere LED screen supports uniform tapping technology. The visual performance is not distorted with such sphere led display technology. It can keep the most vivid picture and video quality for our led video ball
Sphere LED Screen Flexible Installations:

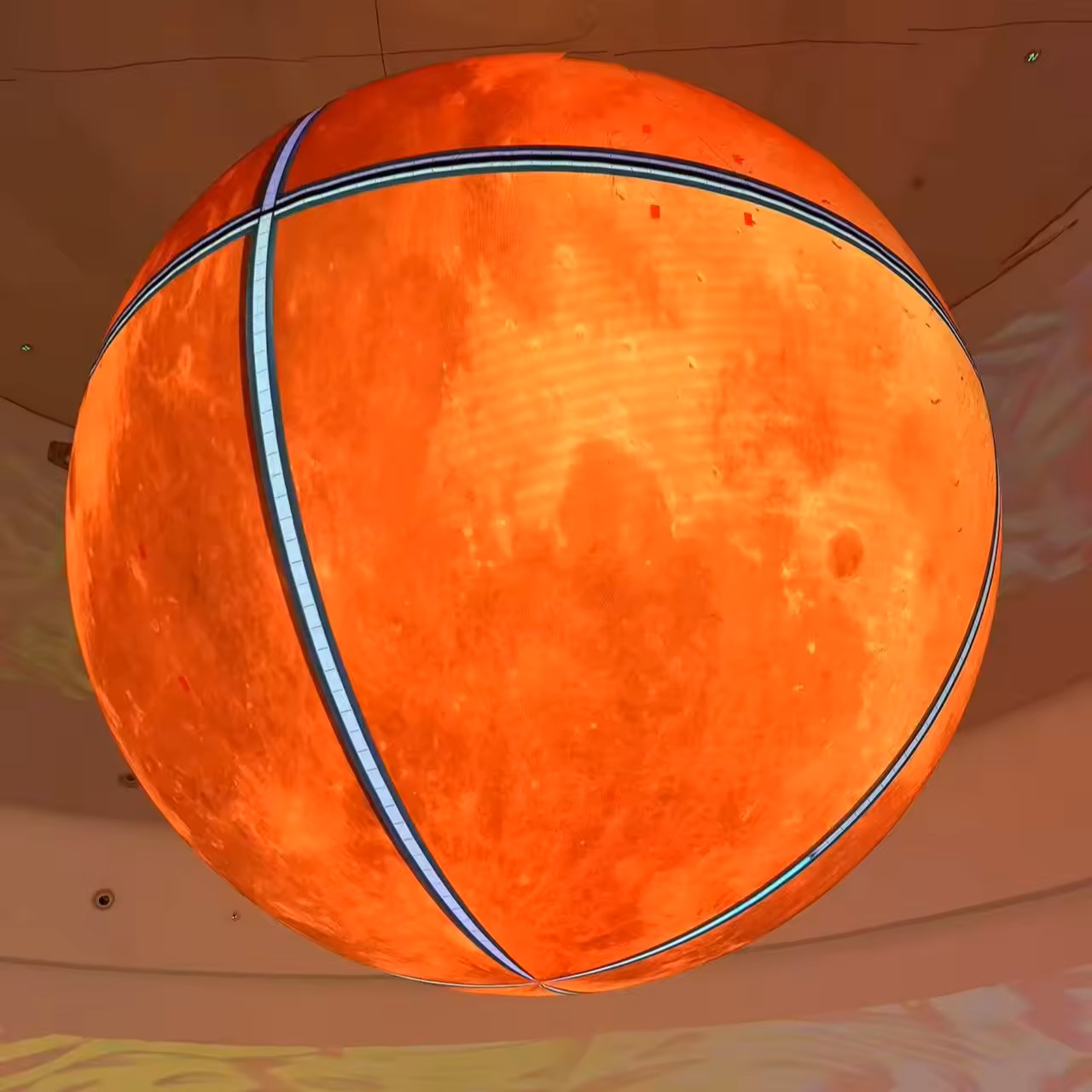

Our led spherical display is compatible with lots of installation methods. It can be freestanding design with base, or hanging installation from the ceiling. Wall-mounted solution with bracket is also feasible
Application fields:
1. Customized:Can be customized required as any sizes and any pixel pitches.
2. Application: For indoor.
3. Installation: Support hanging installation, stand on ground or mobile using.
4. Viewing angle:Perfect viewing angle with 360 degree.
5. Controlling:Both synchronous and asynchronous control way is available for LED balls.
6. Effect:The creative appearance and wonderful showing effect attracts most attention during the usage.
7. Structure:Aluminum material structure which lighter weighs and better for heat dissipation.
8. Design:Special PCB design which can make sure the showing picture distortion less.
9. Maintain:Support front and rear maintenance.
Specifications:
H&SLED-Diameter of 1.5m P2.5 Technical parameters of spherical LED screen | ||
NO. | ITEM | Parameter |
1 | Model No. | P2.5 |
2 | pixel pitch | 2.5㎜ |
3 | physcial density(dot/m²) | 160000像素/㎡ |
4 | lamp | SMD1515 |
5 | PCB | 0.8mm-1.0mm FR4A |
6 | Cabinet Material | Sheet Metal |
7 | Spherical screen diameter | 1.2m |
8 | weight | 98KG |
9 | Best Viewing Distance | 2.5m~200m |
10 | Display Brightness | ≥800cd/㎡ |
11 | Driving method | 1/32 can |
12 | Maintenance | Front/Back service |
13 | Viewing Angle | H:120°/ V:60° |
14 | Refresh Rate | ≥1200Hz(JS/T11281-2007) |
15 | Display Color | 687 billion |
16 | Grayscale/Color | 4K/16.7M |
17 | Color Temperatur | 3200K~7000K |
18 | video signal | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION |
19 | Working Voltage | Input AC 100V-240V,50Hz/60Hz, 0utput: DC 5V |
20 | Temperature Range | -15℃~+50℃,10%~88%RH |
21 | Ingress Protection | Indoor Front:IP35,Back:IP35Outdoor Front:IP65,Back:IP54 |
22 | Life-Span | 100000 Hours |
