P8mm 3m Led Sphere Display Ball Screen Outdoor For Shopping Mall
Product Details:
Place of Origin: | SHENZHEN |
Brand Name: | H&S LED |
Certification: | CE ROHS FCC |
Model Number: | P8 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | Fight case/Wooden case/Honeycomb Box |
Delivery Time: | 25-45 workdays |
Payment Terms: | L/C, T/T |
Supply Ability: | 10Set |
Detail Information |
|||
Name: | Spherical LED Display | Model: | LED Full Color |
---|---|---|---|
Pixels: | 8mm | Use: | Outdoor |
Module Size: | Customized | Spherical Diameter: | Diameter 3m |
Brightness: | 5000cd/sqm | Refresh Rate: | 1920-3840HZ |
Grey Scale: | 14-16bit | Working Temperature: | -20°~+50° |
Operating Voltage: | DC110V-220V | Installation: | Hanging/Stacking/Floor Standing |
Media Available: | Photo, EDA/CAD Models, Other | ||
Highlight: | P8 3m led sphere display,P8mm led sphere display,P8mm led ball display |
Product Description
Outdoor LED ball screen
P8 Diameter 3m Spherical LED Screen
waterproof and dustproof led flexible display
Customize size P8 Diameter 3m Spherical LED Screen with a 3D ball shape Display Screens
Full Colour led display
Pixel Pitch: P6mm,P8mm

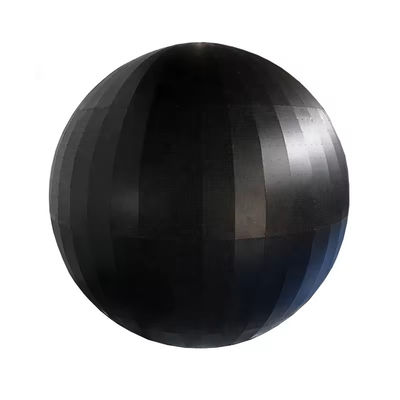

outdoor Sphere LED screen, also called led video ball, is a kind of creative led display which could be seen from 360 degree.

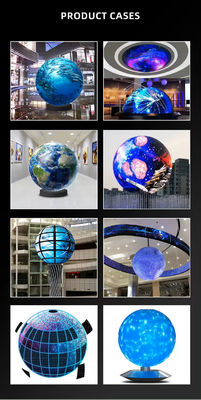

Spherical led screen is perfect for creative design & solution, which is for museum, shopping mall, conference room, events, exhibitions etc.
Sphere led video display is custom made size & solution. It is more attractive and eye-catching with sphere led display panel.
LED Globe Display Seamless Splicing:

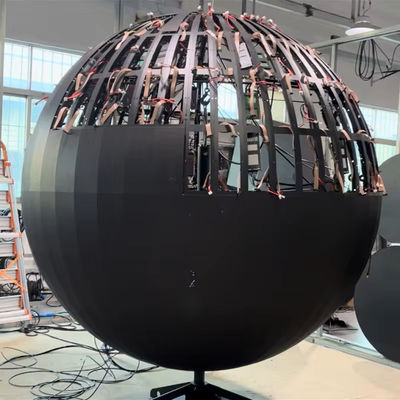

Our Led video ball adopts trapezoidal circuit design. Perfect for good flatness and seamless splicing with our sphere led screen. It’s high refresh rate and color uniformity for excellent visual performance with our led video ball
LED Ball Screen Uniform Tapping:
Sphere LED screen supports uniform tapping technology. The visual performance is not distorted with such sphere led display technology. It can keep the most vivid picture and video quality for our led video ball
Sphere LED Screen Flexible Installations:
Our led spherical display is compatible with lots of installation methods. It can be freestanding design with base, or hanging installation from the ceiling. Wall-mounted solution with bracket is also feasible
Specifications:
Usage
|
outdoor
|
NO. | P8 |
Pixel Pitch
|
8mm
|
LED Type
|
SMD3535
|
Physical Density
|
15625dot/m²
|
Scanning Mode
|
1/5
|
Module Size | Customized |
Spherical diameter
|
3m
|
Panel Material
|
iron
|
Panel Weight
|
Customized
|
Panel Flatness
|
≤0.10 mm
|
Brightness
|
≥5000 cd/㎡
|
Viewing Angle
|
≥140° (H) / 140° (V)
|
Refresh Rate
|
1920-3840Hz
|
Input Voltage AC
|
110~220V
|
Max. Power Consumption
|
≤750 w/㎡
|
Ave. Power Consumption
|
≤300 w/㎡
|
Maintenance | Front/Back service |
Ingress Protection | Outdoor Front:IP65,Back:IP54 |
Working Voltage | Input AC 100V-240V,50Hz/60Hz, 0utput: DC 5V |
Working Temperature
|
-10℃~+40℃
|
Working Humidity
|
10%~90%RH
|
Lifespan
|
≥100,000 hrs
|

Strong Visual Impact & High Safety
Both indoors & outdoors application, with high light transmission and large pixel pitch.
Trapezoidal Line Design & Seamless Splicing
Lightweight construction, excellent wind resistance, easy installation,
efficient heat dissipation, convenient front and rear maintenance,
outstanding waterproof and seismic performance,
low cost of auxiliary installation frame.
