Products

Home > Products > Flexible Led Display > SMD2020 P4 Soft Flexible Led Display Module Screen Programmable

SMD2020 P4 Soft Flexible Led Display Module Screen Programmable

Product Details

Place of Origin: SHENZHEN

Brand Name: HS

Certification: CE ROHS FCC

Model Number: P4

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Fight case/Wooden case/Honeycomb Box

Delivery Time: 7-15 workdays

Payment Terms: L/C, T/T

Supply Ability: 1000Set

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                    SMD2020 flexible led display module, P4 flexible led display module, SMD2020 flexible programmable led display


Name:	Soft Led Display	Pixels:	4mm
Density(pixels/m2):	62500	Model Size:	256mm128mm16mm
LED Chip:	SMD2020	Refresh Rate:	3840Hz
Brightness:	1000 Cd/m2	Led Color:	1R1G1B Full Color
Best Viewingangle:	(Horizontal/Vertical)140 /140	Best Viewing Distance:	≥4m
Working Voltage:	AC 220±10% Or 110±10%	IP Grade:	IP38-IP45

Name:	Soft Led Display
Pixels:	4mm
Density(pixels/m2):	62500
Model Size:	256mm128mm16mm
LED Chip:	SMD2020
Refresh Rate:	3840Hz
Brightness:	1000 Cd/m2
Led Color:	1R1G1B Full Color
Best Viewingangle:	(Horizontal/Vertical)140 /140
Best Viewing Distance:	≥4m
Working Voltage:	AC 220±10% Or 110±10%
IP Grade:	IP38-IP45

Product Description

LED flexible module, flexible and versatile, can bend freely.
Strong magnetic suction installation, simple, fast, and precise.
Modular structural design, easy to disassemble and maintain.
The surface adopts a silicone mask, which is soft and easy to bend.

NO	Project	Technical Parameters
1	Pixel pitch	4mm
2	Pixel density	62500dots/m²
3	resolution	64dotsX32dots
4	size	256mm X128mm X11mm
5	weight	0.5kg
6	Bending arc	Center bend arc≤120°
7	Number of bends	<1000pcs
8	Driving method	16-bit constant current driver
9	scanning method	1/16 s
10	Operating Voltage	DC5V±10%
11	Max current	2.6A
12	Max Power	13W
13	Power interface	VH4
14	Signal interface	HUB75D(IDC16)
15	brightness	1000cd/m²
16	Color &temperature	9000±500K
17	Perspective	120° 120°
18	Best sight distance	≥4m
19	Gray scale	≥14 Bit
20	Refresh rate	1920Hz-3840Hz
21	Dimming	800-1000
22	Service life	100,000H
23	Operating temperature	- 20℃~60℃
24	Working humidity	10%-95%RH
25	storage temperature	- 40℃~80℃
26	Drive device	MBI5124

Features:

1. High flexibility
Tailored according to needs, the module has extremely high flexibility and a curvature of less than 90 °;
2. Sturdy structure
The box body adopts a die stamping and folding process, with high strength; CNC precision machining, precise size and good consistency;
3. Brightness adjustable
Using specialized technology and devices, adjusting display brightness through hardware/software implementation methods without sacrificing the grayscale of the image;
4. Ultra wide viewing angle
Both horizontal and vertical viewing angles can reach 140 °, and high-quality display effects can be seen from all angles;
5. High protection
High standard, dust-proof, moisture-proof, and corrosion-resistant process treatment, suitable for long-term use in harsh outdoor environments;
6. Easy to maintain
The design of the rear door of the box allows for front/rear maintenance of the module;
7. Standardization
Adopting standardized modules and boxes for quick and convenient installation;
8. Energy saving environment
Excellent heat dissipation performance, low power consumption, and high stability;

Product Pictures:

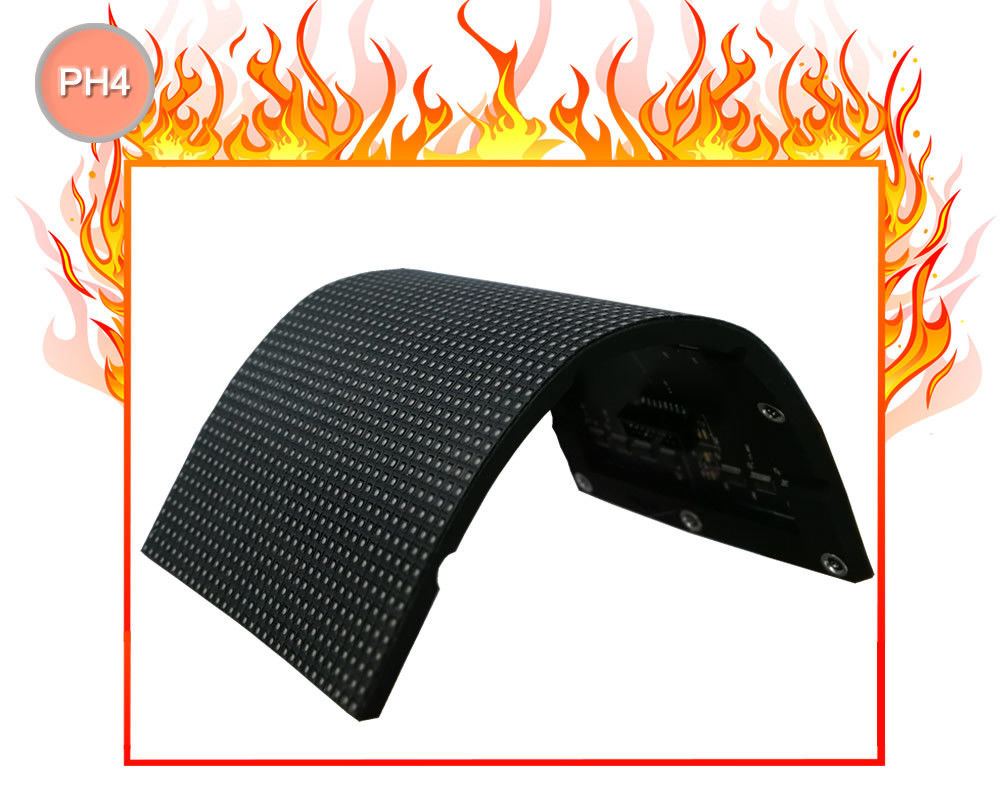

SMD2020 P4 Soft Flexible Led Display Module Screen Programmable 0
