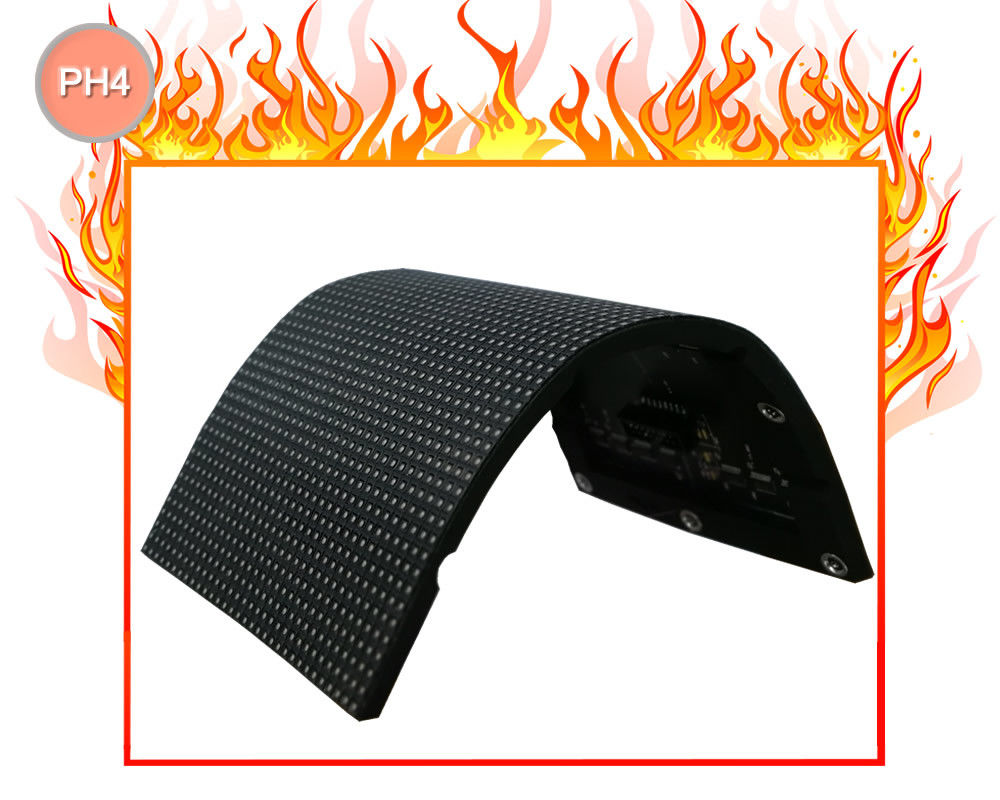

SMD2020 P4 Soft Flexible Led Display Module Screen Programmable
| Place of Origin | SHENZHEN |
|---|---|
| Brand Name | HS |
| Certification | CE ROHS FCC |
| Model Number | P4 |
| Minimum Order Quantity | 1set |
| Packaging Details | Fight case/Wooden case/Honeycomb Box |
| Delivery Time | 7-15 workdays |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000Set |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Soft Led Display | Pixels | 4mm |
|---|---|---|---|
| Density(pixels/m2) | 62500 | Model Size | 256mm*128mm*16mm |
| LED Chip | SMD2020 | Refresh Rate | 3840Hz |
| Brightness | 1000 Cd/m2 | Led Color | 1R1G1B Full Color |
| Best Viewingangle | (Horizontal/Vertical)140 /140 | Best Viewing Distance | ≥4m |
| Working Voltage | AC 220±10% Or 110±10% | IP Grade | IP38-IP45 |
| Highlight | SMD2020 flexible led display module,P4 flexible led display module,SMD2020 flexible programmable led display |
||
Product Description
LED flexible module, flexible and versatile, can bend freely.
Strong magnetic suction installation, simple, fast, and precise.
Modular structural design, easy to disassemble and maintain.
The surface adopts a silicone mask, which is soft and easy to bend.
Strong magnetic suction installation, simple, fast, and precise.
Modular structural design, easy to disassemble and maintain.
The surface adopts a silicone mask, which is soft and easy to bend.
| NO | Project | Technical Parameters |
| 1 | Pixel pitch | 4mm |
| 2 | Pixel density | 62500dots/m² |
| 3 | resolution | 64dotsX32dots |
| 4 | size | 256mm X128mm X11mm |
| 5 | weight | 0.5kg |
| 6 | Bending arc | Center bend arc≤120° |
| 7 | Number of bends | <1000pcs |
| 8 | Driving method | 16-bit constant current driver |
| 9 | scanning method | 1/16 s |
| 10 | Operating Voltage | DC5V±10% |
| 11 | Max current | 2.6A |
| 12 | Max Power | 13W |
| 13 | Power interface | VH4 |
| 14 | Signal interface | HUB75D(IDC16) |
| 15 | brightness | 1000cd/m² |
| 16 | Color &temperature | 9000±500K |
| 17 | Perspective | 120° 120° |
| 18 | Best sight distance | ≥4m |
| 19 | Gray scale | ≥14 Bit |
| 20 | Refresh rate | 1920Hz-3840Hz |
| 21 | Dimming | 800-1000 |
| 22 | Service life | 100,000H |
| 23 | Operating temperature | - 20℃~60℃ |
| 24 | Working humidity | 10%-95%RH |
| 25 | storage temperature | - 40℃~80℃ |
| 26 | Drive device | MBI5124 |
Features:
1. High flexibility
Tailored according to needs, the module has extremely high flexibility and a curvature of less than 90 °;
2. Sturdy structure
The box body adopts a die stamping and folding process, with high strength; CNC precision machining, precise size and good consistency;
3. Brightness adjustable
Using specialized technology and devices, adjusting display brightness through hardware/software implementation methods without sacrificing the grayscale of the image;
4. Ultra wide viewing angle
Both horizontal and vertical viewing angles can reach 140 °, and high-quality display effects can be seen from all angles;
5. High protection
High standard, dust-proof, moisture-proof, and corrosion-resistant process treatment, suitable for long-term use in harsh outdoor environments;
6. Easy to maintain
The design of the rear door of the box allows for front/rear maintenance of the module;
7. Standardization
Adopting standardized modules and boxes for quick and convenient installation;
8. Energy saving environment
Excellent heat dissipation performance, low power consumption, and high stability;
Tailored according to needs, the module has extremely high flexibility and a curvature of less than 90 °;
2. Sturdy structure
The box body adopts a die stamping and folding process, with high strength; CNC precision machining, precise size and good consistency;
3. Brightness adjustable
Using specialized technology and devices, adjusting display brightness through hardware/software implementation methods without sacrificing the grayscale of the image;
4. Ultra wide viewing angle
Both horizontal and vertical viewing angles can reach 140 °, and high-quality display effects can be seen from all angles;
5. High protection
High standard, dust-proof, moisture-proof, and corrosion-resistant process treatment, suitable for long-term use in harsh outdoor environments;
6. Easy to maintain
The design of the rear door of the box allows for front/rear maintenance of the module;
7. Standardization
Adopting standardized modules and boxes for quick and convenient installation;
8. Energy saving environment
Excellent heat dissipation performance, low power consumption, and high stability;
Product Pictures:
