Product Details:

Place of Origin: shenzhen,China
Brand Name: H&S LED
Certification: CE ROHS FCC
Model Number: P2.5

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Fight case/Wooden case/Honeycomb Box
Delivery Time: 25-45 workdays
Payment Terms: L/C, T/T
Supply Ability: 50Set/30DAY
Get Best Price Contact Now

Detail Information

Name: LED Ball Screen LED: SMD1515
Pixel Pitch: 2.5mm Resolution: 160000dot/SQM
Module Size: Customized Spherical Diameter: 1m
Brightness: 800-1000cd/sqm Refresh Rate: 3840Hz
Input Voltage AC: 110~220V Installation: Hanging/Stacking/Floor Standing
Media Available: Photo, EDA/CAD Models, Other Use: Advertising Publish, Welcome Display
Highlight:

Commercial spherical led display

,

Customized spherical led display

,

P2.5 led sphere screen

Product Description

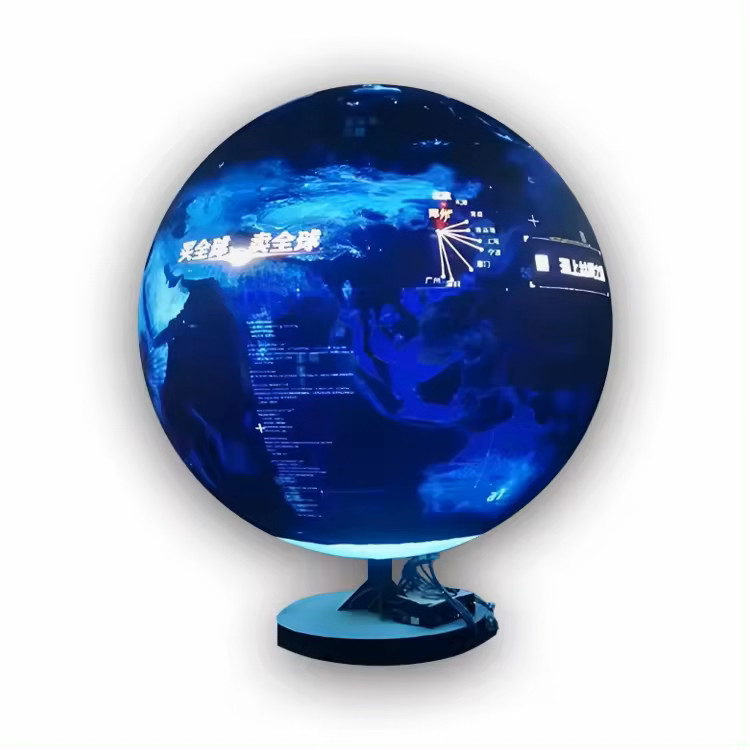

Shaped LED Spherical Screen Globe Diameter 1m Sphere Display P2.5 LED Ball Screen

Spherical LED Display

A Sphere LED display is a creative LED display, which is an important milestone in the development of LED display screen.

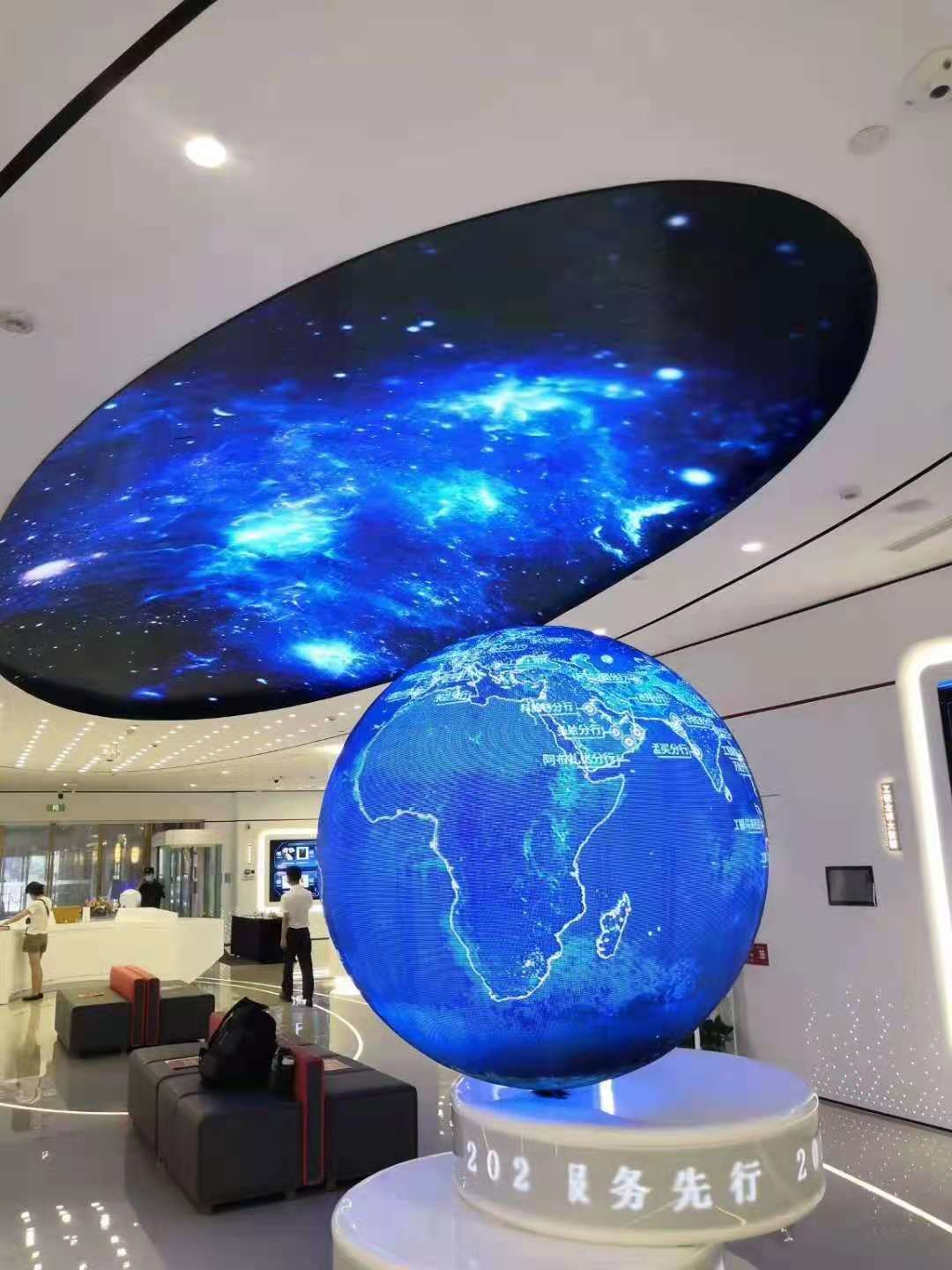

It has the characteristics of multiple splicing display, flexible shaped display, uniform display,high-definition image without distortion, etc Spherical LED display has high commercial value. It is widely used in shopping malls,science exhibitions, concerts, theaters, TV studio, creative exhibition hall and other multimedia areas.

LED Globe Display Seamless Splicing:
Our Led video ball adopts trapezoidal circuit design. Perfect for good flatness and seamless splicing with our sphere led screen. It’s high refresh rate and color uniformity for excellent visual performance with our led video ball

LED Ball Screen Uniform Tapping:
Sphere LED screen supports uniform tapping technology. The visual performance is not distorted with such sphere led display technology. It can keep the most vivid picture and video quality for our led video ball

Sphere LED Screen Flexible Installations:
Our led spherical display is compatible with lots of installation methods. It can be freestanding design with base, or hanging installation from the ceiling. Wall-mounted solution with bracket is also feasible

Application fields:
1. Customized:Can be customized required as any sizes and any pixel pitches.
2. Application: For indoor.
3. Installation: Support hanging installation, stand on ground or mobile using.
4. Viewing angle:Perfect viewing angle with 360 degree.
5. Controlling:Both synchronous and asynchronous control way is available for LED balls.
6. Effect:The creative appearance and wonderful showing effect attracts most attention during the usage.
7. Structure:Aluminum material structure which lighter weighs and better for heat dissipation.
8. Design:Special PCB design which can make sure the showing picture distortion less.
9. Maintain:Support front and rear maintenance.

Specifications:
H&SLED-Diameter of 1m P2.5 Technical parameters of spherical LED screen
NO. ITEM Parameter
1 Model No. P2.5
2 pixel pitch 2.5㎜
3 physcial density(dot/m²) 160000像素/㎡
4 lamp SMD1515
5 PCB 0.8mm-1.0mm FR4A
6 Cabinet Material Sheet Metal
7 Spherical screen diameter 1m
8 weight 46KG
9 Best Viewing Distance 2.5m~200m
10 Display Brightness ≥800cd/㎡
11 Driving method 1/32 can
12 Maintenance Front/Back service
13 Viewing Angle H:120°/ V:60°
14 Refresh Rate ≥1200Hz(JS/T11281-2007)
15 Display Color 687 billion
16 Grayscale/Color 4K/16.7M
17 Color Temperatur 3200K~7000K
18 video signal RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION
19 Working Voltage Input AC 100V-240V,50Hz/60Hz, 0utput: DC 5V
20 Temperature Range -15℃~+50℃,10%~88%RH
21 Ingress Protection Indoor Front:IP35,Back:IP35Outdoor Front:IP65,Back:IP54
22 Life-Span 100000 Hours
