ODM Ultra Thin Flexible Led Screen Display P1.6 Soft Module 1R1G1B

ODM Ultra Thin Flexible Led Screen Display P1.6 Soft Module 1R1G1B

Product Details:

Place of Origin: SHENZHEN
Brand Name: H&S LED
Certification: CE ROHS FCC
Model Number: P2.5

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Packaging Details: Fight case/Wooden case/Honeycomb Box
Delivery Time: 7-25 workdays
Payment Terms: L/C, T/T
Supply Ability: 10000PCS
Get Best Price Contact Now

Detail Information

Name: LED Soft Module Model: P1.667
Module Size: 320*160mm Tube Chip Color: Full Color,1R1G1B
Leds: SMD1212 Scan Mode: 1/48S
Brightness: 800-1000cd Pixel Density: 360000pixles/sq.m
Working Voltage: AC110V-220V Lifetime: ≥100,000 Hours
Highlight:

ODM ultra thin flexible led screen

,

1R1G1B ultra thin flexible led screen

,

ODM P1.6 soft led display

Product Description

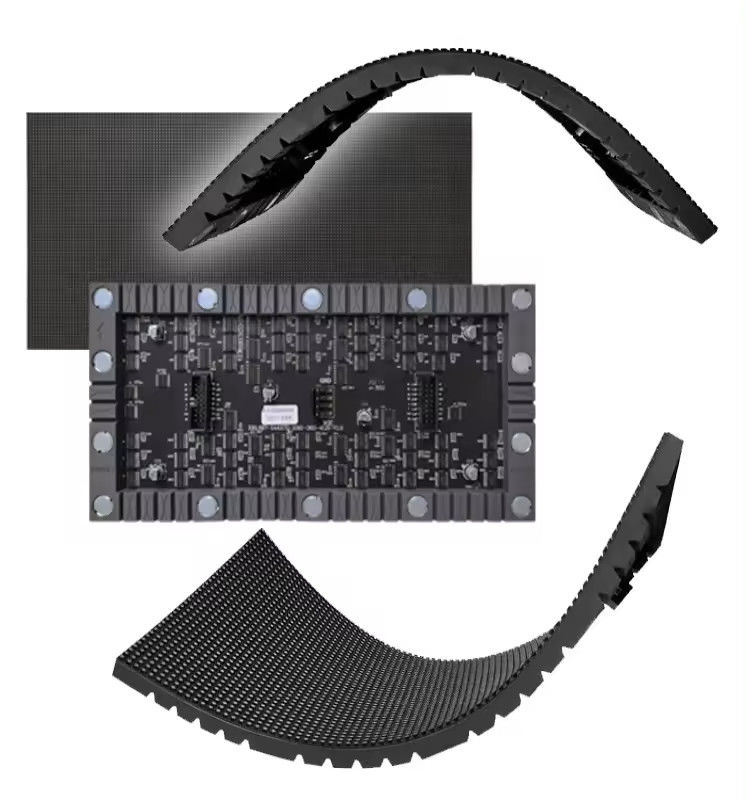

SMD1212 LED Model Soft LED display - Indoor Flexible led display

LED Flexible Screen
Good flexibility.Break through the limitation of perspective and make creative display a reality.

Creative screen, customized special-shape
Full color display,multiple pixels in series or parallel can achieve full color display.

LED Soft Screen
Light weight,easy installation.can be concave and convex, curved, cylinder and any irregular shape.



Parameters:

SMD1212 LED Model - Indoor Flexible led display
Pixel Pitch
1.667mm
1.86mm
LED Configuration
SMD1212
SMD1212
Application
Indoor
Indoor
Pixel Density/sqm
360000 dots
288906 dots
Module Size/mm
320 x 160 mm
320 x 160 mm
Module Resolution
192 x 96 dots
172 x 86 dots
Scan
1/48S
1/43S
IP Rating
IP43
Brightness /sqm
800-1000 nits
Gray Scale/bit
16 bit
Max. Power Consumption/W
640 W/sqm
Ave. Power Consumption/W
192 W/sqm
Refresh Frequency/Hz
3840 Hz
Humidity(working) 10-95%
Temperature -20-60℃
Working voltage
AC 220±10% or 110±10%
Operating Life
100,000Hours



Easily Build Concave & Convex Curves:


Spice up your imaging landscape via seamless convex or concave curved video walls with angles, curves and just about any other creative design.



Front & Rear Serviceability:


The module can be maintained and disassembled from the front & rear end, Single module replacement is made easy, improving serviceability in the field.



Magnetic Design


Magnetic mounts allow for attachment to virtually any surface enabling the most creative LED designs.



Reliable Data & Power Management:


External sending and receiving control, paired with quality connectors, guarantee safe and reliable connections between each Adaptive LED tile where traditional
flat LED panels are not applicable, Keeping construction of the final product slim, lightweight, and compact.
